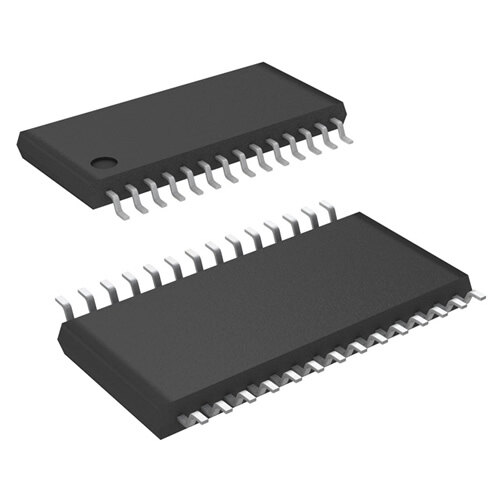

TRS3243EIPWG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 Rail/Tube Nickel/Palladium/Gold (Ni/Pd/Au) Receiver interface receiver 5.5V 1mA 117.508773mg 500kbps
PDF
/
Inventory: 6333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.4mm
Length 9.7mm
Technical
Number of Transmitters 3
Number of Receivers 5
Supply Voltage1-Nom 3.3V
Number of Transceivers 1
Driver Number of Bits 3
Interface IC Type LINE TRANSCEIVER
Input Characteristics SCHMITT TRIGGER
Output Polarity TRUE
Differential Output NO
Data Rate 500 kbps
Logic Function Receiver
Nominal Supply Current 1mA
Min Supply Voltage 3V
Max Supply Voltage 5.5V
Temperature Grade INDUSTRIAL
Operating Supply Voltage 5V
Pin Count 28
Supply Voltage 3.3V
Number of Functions 3
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 117.508773mg
Number of Pins 28
Package / Case TSSOP
Mount Surface Mount
