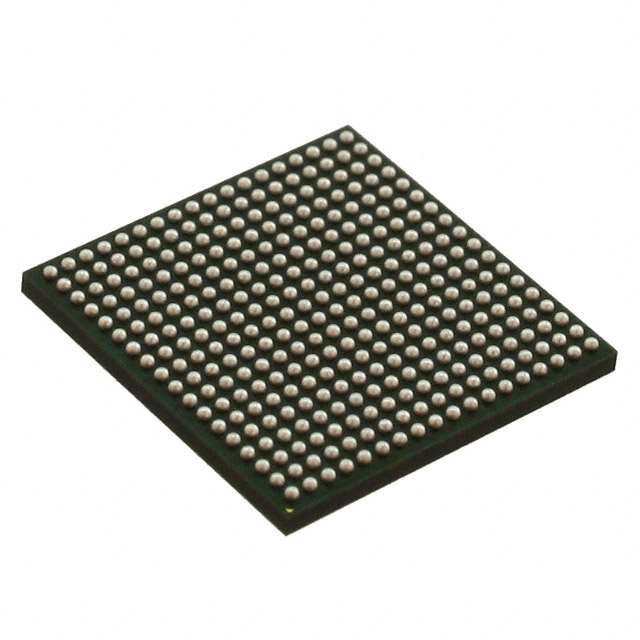

TLK6002ZEU
RoHS
RoHS compliant
RoHS compliantPackage 324-BGA Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
e1 TLK6002 Tray Gigabit Ethernet interface receiver 1V 250mA 2.42mm 6.25Gbps
PDF
/
Buying Options
Total Price: USD $33.29
Unit Price: USD $33.2861
≥1 USD $33.2861
≥10 USD $27.3125
≥100 USD $26.45845
≥500 USD $25.60535
≥1000 USD $24.7513
Inventory: 5505
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 1.73mm
Width 19mm
Length 19mm
Height 2.42mm
Technical
Number of Receivers 2
Supply Voltage1-Nom 1V
Number of Transceivers 1
Duplex Full
Driver Number of Bits 2
Number of Drivers/Receivers 2/2
Input Characteristics STANDARD
Protocol Gigabit Ethernet
Output Polarity TRUE
Differential Output YES
Data Rate 6.25 Gbps
Logic Function Receiver
Max Supply Current 250mA
Nominal Supply Current 800mA
Interface Serial
Qualification Status Not Qualified
Pin Count 324
Base Part Number TLK6002
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 1V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.5V 1.8V
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Transceiver
Number of Terminations 324
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 324
Surface Mount YES
Package / Case 324-BGA Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
