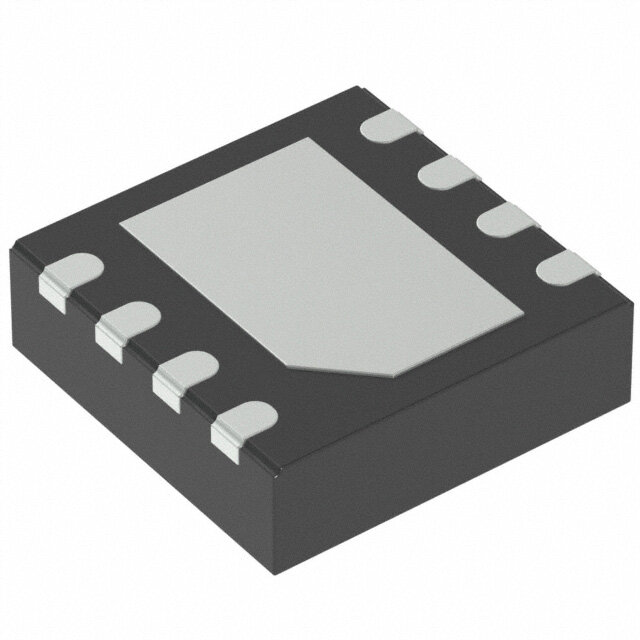

THVD1450DRBT
RoHS
RoHS compliant
RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
S-PDSO-N8 THVD1450 Tape & Reel (TR) RS485 interface transceiver 30mV 3mm 40ns 50Mbps
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.7752
≥1 USD $3.7752
≥10 USD $3.38888
≥100 USD $3.203552
≥500 USD $2.776488
Inventory: 1189
Minimum: 1
-
+
Technical Details
Technical
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Base Part Number THVD1450
JESD-30 Code S-PDSO-N8
Data Rate 50Mbps
Differential Output YES
Protocol RS485
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Number of Drivers/Receivers 1/1
Driver Number of Bits 1
Receiver Number of Bits 1
Duplex Half
Receiver Hysteresis 30mV
Interface Standard EIA-485-A; TIA-485-A
Receive Delay-Max 40 ns
Transmit Delay-Max 20 ns
Supply Voltage1-Nom 5V
Terminal Form NO LEAD
Terminal Position DUAL
Voltage - Supply 3V~5.5V
Terminal Finish Matte Tin (Sn)
Type Transceiver
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Dimensions
Height Seated (Max) 1mm
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Surface Mount YES
Package / Case 8-VDFN Exposed Pad
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Factory Lead Time 6 Weeks
