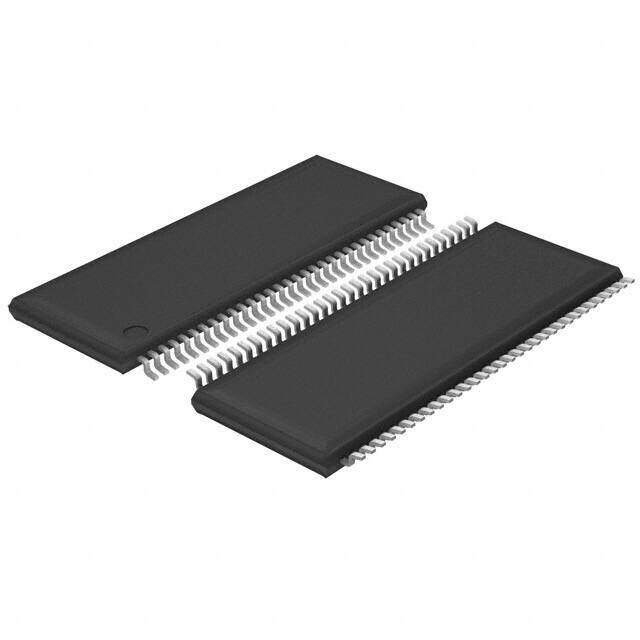

SN75LVDS387DGGRG4
RoHS
RoHS compliant
RoHS compliantPackage 64-TFSOP (0.240, 6.10mm Width)
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 75LVDS387 Tape & Reel (TR) LVDS interface receiver 3.3V 0.00002A 262.601633mg 2.9ns
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.95355
≥1 USD $2.95355
≥10 USD $2.42345
≥100 USD $2.34745
≥500 USD $2.2724
≥1000 USD $2.1964
Inventory: 1742
Minimum: 1
-
+
Technical Details
Technical
High Level Input Current-Max 0.00002A
Out Swing-Min 0.247 V
Number of Receivers 16
Supply Voltage1-Nom 3.3V
Driver Number of Bits 16
Number of Drivers/Receivers 16/0
Input Characteristics STANDARD
Protocol LVDS
Output Polarity COMPLEMENTARY
Differential Output YES
Output Characteristics 3-STATE
Data Rate 630Mbps
Turn On Delay Time 2.9 ns
Propagation Delay 2.9 ns
Power Dissipation 2.094W
Nominal Supply Current 95mA
Operating Supply Voltage 3.3V
Pin Count 64
Base Part Number 75LVDS387
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 16
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3V~3.6V
Technology CMOS
HTS Code 8542.39.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Driver
ECCN Code EAR99
Number of Terminations 64
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Dimensions
Height 1.2mm
Length 17mm
Width 6.1mm
Thickness 1.15mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 262.601633mg
Number of Pins 64
Package / Case 64-TFSOP (0.240, 6.10mm Width)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
