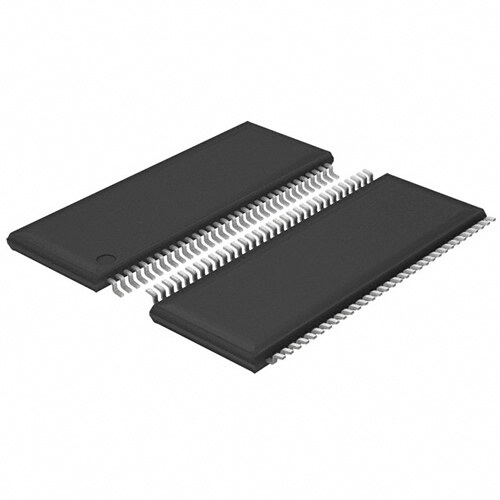

SN75LVDS387DGGG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 Rail/Tube Nickel/Palladium/Gold (Ni/Pd/Au) COMMERCIAL interface transceiver 3.6V 0.00002A 262.601633mg 2.9ns
PDF
/
Inventory: 5101
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case TSSOP
Number of Pins 64
Weight 262.601633mg
Technical
Packaging Rail/Tube
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 2
Number of Terminations 64
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Subcategory Line Driver or Receivers
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 16
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Pin Count 64
Operating Supply Voltage 3.3V
Number of Elements 16
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Nominal Supply Current 95mA
Power Dissipation 2.094W
Propagation Delay 2.9 ns
Turn On Delay Time 2.9 ns
Data Rate 630 Mbps
Output Characteristics 3-STATE
Differential Output YES
Output Polarity TRUE
Input Characteristics STANDARD
Interface IC Type LINE DRIVER
Driver Number of Bits 16
High Level Input Current-Max 0.00002A
Out Swing-Min 0.247 V
Supply Voltage1-Nom 3.3V
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 6.1mm
Length 17mm
Height 1.15mm
