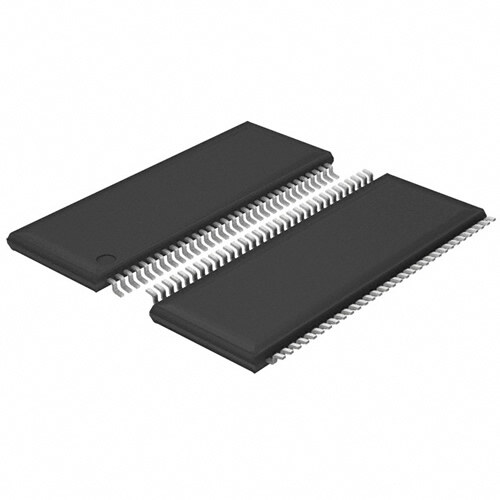

SN75LVDS386DGGG4 image
Favorite
SN75LVDS386DGGG4 image
Favorite

SN75LVDS386DGGG4

Texas Instruments
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description EAR99 Rail/Tube Nickel/Palladium/Gold (Ni/Pd/Au) Receiver interface transceiver 3.6V 0.00001A 262.601633mg 4ns
PDF
/
Inventory: 1874
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case TSSOP
Number of Pins 64
Weight 262.601633mg

Technical

Packaging Rail/Tube
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 2
Number of Terminations 64
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
HTS Code 8542.39.00.01
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 16
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Pin Count 64
Operating Supply Voltage 3.3V
Number of Elements 16
Temperature Grade COMMERCIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Nominal Supply Current 70mA
Power Dissipation 2.094W
Propagation Delay 4 ns
Turn On Delay Time 4 ns
Logic Function Receiver
Data Rate 630 Mbps
Differential Output NO
Output Polarity TRUE
Input Characteristics DIFFERENTIAL
Receiver Number of Bits 16
Supply Voltage1-Nom 3.3V
Output Low Current-Max 0.008A
High Level Input Current-Max 0.00001A

Dimensions

Height 1.15mm
Length 17mm
Width 6.1mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
