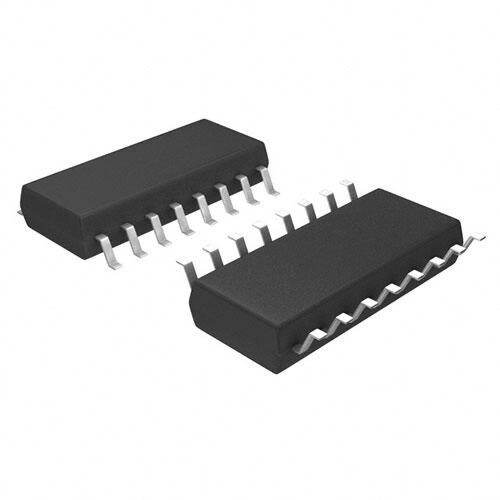

SN75ALS192NSRG4
RoHS
/
Package SOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 Tape and Reel Nickel/Palladium/Gold (Ni/Pd/Au) COMMERCIAL interface transceiver 5.25V 0.00002A 200.686274mg 5V
PDF
/
Inventory: 8522
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5.3mm
Length 10.2mm
Height Seated (Max) 2mm
Technical
Number of Transmitters 4
High Level Input Current-Max 0.00002A
Out Swing-Min 2 V
Supply Voltage1-Nom 5V
Driver Number of Bits 4
Interface IC Type LINE DRIVER
Input Characteristics STANDARD
Output Polarity COMPLEMENTARY
Differential Output YES
Output Characteristics 3-STATE
Nominal Supply Current 45mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Power Supplies 5V
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Line Driver or Receivers
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1
JESD-609 Code e4
Packaging Tape and Reel
Physical
Weight 200.686274mg
Number of Pins 16
Package / Case SOP
Mount Surface Mount
