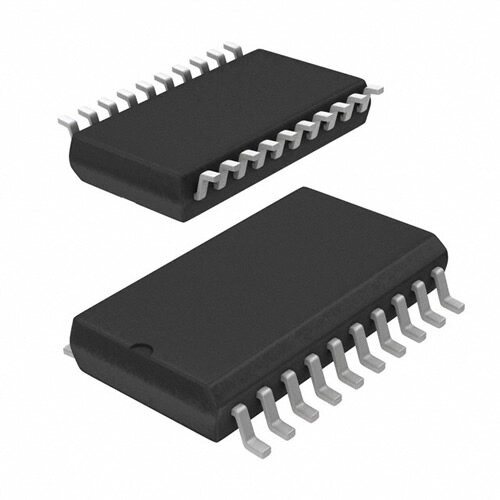

SN75ALS174ADWE4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 Rail/Tube Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 6days ago) interface transceiver 5.25V 0.00002A 537.308512mg 22ns
PDF
/
Inventory: 1807
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Thickness 2.35mm
Width 7.5mm
Length 12.8mm
Height 2.65mm
Technical
Number of Transmitters 4
High Level Input Current-Max 0.00002A
Output Low Current-Max 0.06A
Supply Voltage1-Nom 5V
Transmit Delay-Max 22 ns
Driver Number of Bits 4
Interface IC Type LINE DRIVER
Input Characteristics STANDARD
Output Polarity COMPLEMENTARY
Differential Output YES
Output Characteristics 3-STATE
Data Rate 20 Mbps
Nominal Supply Current 55mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Power Supplies 5V
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Line Driver or Receivers
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 537.308512mg
Number of Pins 20
Surface Mount YES
Package / Case SOIC
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
