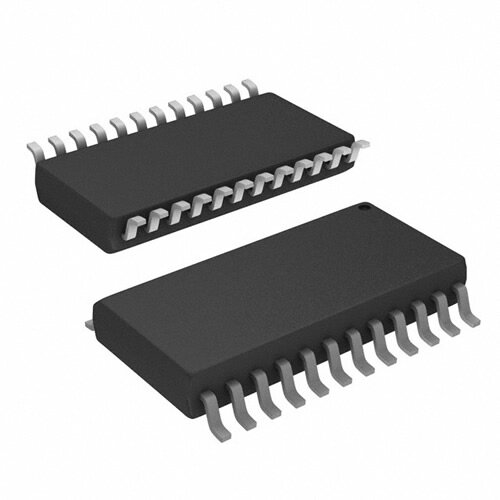

SN75ALS162DWG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 SOIC Nickel/Palladium/Gold (Ni/Pd/Au) Transceiver interface driver 5.25V -5.2mA 624.398247mg 20ns
PDF
/
Inventory: 3689
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 24
Weight 624.398247mg
Technical
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 24
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Technology TTL
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 8
Supply Voltage 5V
Pin Count 24
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Nominal Supply Current 75mA
Propagation Delay 20 ns
Logic Function Transceiver
Output Characteristics OPEN-COLLECTOR
Differential Output NO
Output Polarity TRUE
Input Characteristics SCHMITT TRIGGER
Driver Number of Bits 8
High Level Output Current -5.2mA
Low Level Output Current 48mA
Number of Transceivers 1
Supply Voltage1-Nom 5V
Number of Receivers 8
Dimensions
Height 2.35mm
Length 15.4mm
Width 7.52mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
