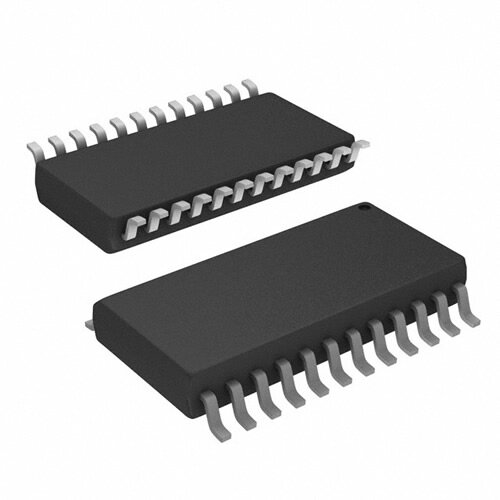

SN75ALS162DWE4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 SOIC Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 3days ago) interface receiver 5.25V -5.2mA 624.398247mg 20ns
PDF
/
Inventory: 5113
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Thickness 2.35mm
Width 7.5mm
Length 15.4mm
Height 2.65mm
Technical
Number of Receivers 8
Supply Voltage1-Nom 5V
Number of Transceivers 1
Low Level Output Current 48mA
High Level Output Current -5.2mA
Driver Number of Bits 8
Input Characteristics SCHMITT TRIGGER
Output Polarity TRUE
Differential Output NO
Output Characteristics OPEN-COLLECTOR
Logic Function Transceiver
Propagation Delay 20 ns
Nominal Supply Current 75mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Number of Functions 8
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology TTL
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Physical
Weight 624.398247mg
Number of Pins 24
Package / Case SOIC
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
