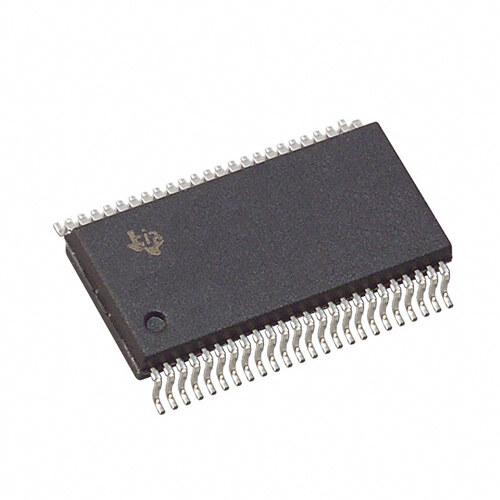

SN75976A2DLG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
e4 Rail/Tube COMMON I/O; ADDITIONAL COMMON ENABLE INPUT Nickel/Palladium/Gold (Ni/Pd/Au) interface receiver 5.25V 60mA 689.999043mg 20Mbps
PDF
/
Inventory: 7165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.49mm
Length 18.41mm
Height 2.59mm
Technical
Out Swing-Min 1 V
Number of Receivers 9
Supply Voltage1-Nom 5V
Simplex/Duplex Half Duplex
Number of Transceivers 1
Driver Number of Bits 9
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Output Polarity COMPLEMENTARY
Differential Output YES
Output Characteristics 3-STATE
Data Rate 20 Mbps
Logic Function Transceiver
Nominal Supply Current 60mA
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Number of Circuits 32
Temperature Grade COMMERCIAL
Power Supplies 5V
Operating Supply Voltage 5V
Pin Count 56
Terminal Pitch 0.635mm
Supply Voltage 5V
Number of Functions 9
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Line Driver or Receivers
Additional Feature COMMON I/O; ADDITIONAL COMMON ENABLE INPUT
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 56
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Packaging Rail/Tube
Physical
Weight 689.999043mg
Number of Pins 56
Package / Case SSOP
Mount Surface Mount
Alternative Model
