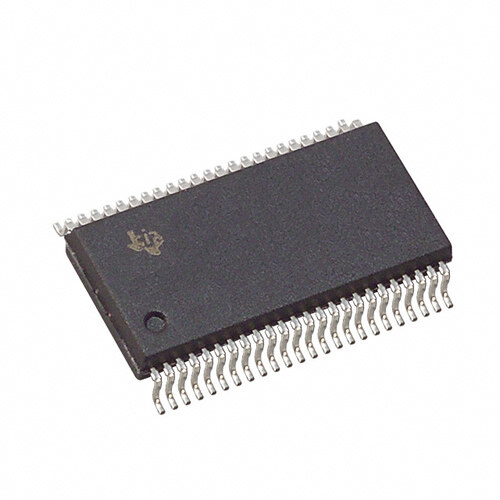

SN75976A1DLRG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
IC TXRX RS422/RS485 9/9 56SSOP
PDF
/
Buying Options
Total Price: USD $30.8
Unit Price: USD $30.8028
≥1 USD $30.8028
≥10 USD $25.2738
≥100 USD $24.48435
≥500 USD $23.6949
≥1000 USD $22.9045
Inventory: 1198
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SSOP
Number of Pins 56
Weight 689.999043mg
Technical
Packaging Tape and Reel
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 2
Number of Terminations 56
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature COMMON I/O; ADDITIONAL COMMON ENABLE INPUT
Subcategory Line Driver or Receivers
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 9
Supply Voltage 5V
Terminal Pitch 0.635mm
Pin Count 56
Operating Supply Voltage 5V
Power Supplies 5V
Temperature Grade COMMERCIAL
Number of Circuits 32
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Nominal Supply Current 60mA
Logic Function Transceiver
Data Rate 20 Mbps
Output Characteristics 3-STATE
Differential Output YES
Output Polarity COMPLEMENTARY
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Driver Number of Bits 9
Number of Transceivers 1
Simplex/Duplex Half Duplex
Supply Voltage1-Nom 5V
Number of Receivers 9
Out Swing-Min 1 V
Dimensions
Width 7.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
