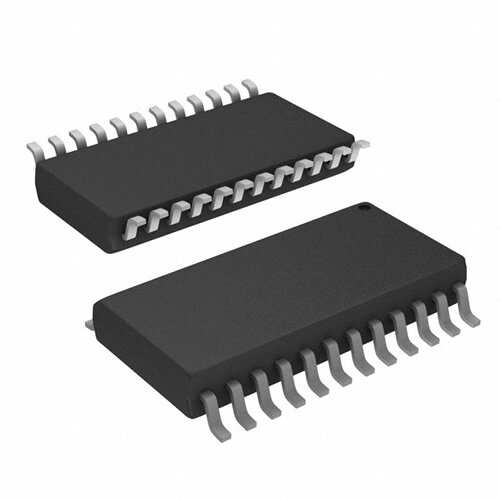

SN75162BDWE4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 SOIC Nickel/Palladium/Gold (Ni/Pd/Au) ACTIVE (Last Updated: 6days ago) interface driver 5.25V -5.2mA 624.398247mg 22ns
PDF
/
Inventory: 6547
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mount Surface Mount
Package / Case SOIC
Number of Pins 24
Weight 624.398247mg
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 24
Qualification Status Not Qualified
Operating Supply Voltage 5V
Temperature Grade COMMERCIAL
Max Supply Voltage 5.25V
Min Supply Voltage 4.75V
Nominal Supply Current 110mA
Propagation Delay 22 ns
Logic Function Transceiver
Output Characteristics 3-STATE
Differential Output NO
Output Polarity TRUE
Input Characteristics SCHMITT TRIGGER
Driver Number of Bits 8
High Level Output Current -5.2mA
Low Level Output Current 48mA
Receiver Number of Bits 8
Transmit Delay-Max 20 ns
Supply Voltage1-Nom 5V
Number of Transmitters 8
Dimensions
Height 2.65mm
Length 15.4mm
Width 7.5mm
Thickness 2.35mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
