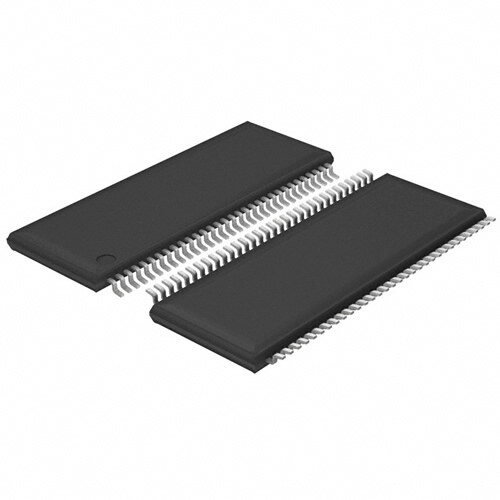

SN65LVDM1676DGGG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 Rail/Tube GENERAL PURPOSE Nickel/Palladium/Gold (Ni/Pd/Au) interface transceiver 3.6V 0.00002A 262.601633mg 4.5ns
PDF
/
Inventory: 8533
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case TSSOP
Number of Pins 64
Weight 262.601633mg
Technical
Packaging Rail/Tube
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 2
Number of Terminations 64
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Line Driver or Receivers
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 16
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Pin Count 64
Operating Supply Voltage 3.3V
Number of Elements 16
Temperature Grade INDUSTRIAL
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Nominal Supply Current 175mA
Power Dissipation 2.094W
Propagation Delay 4.5 ns
Turn On Delay Time 4.5 ns
Logic Function Transceiver
Data Rate 650 Mbps
Output Characteristics DIFFERENTIAL
Differential Output YES
Output Polarity COMPLEMENTARY
Input Characteristics DIFFERENTIAL
Driver Number of Bits 16
Receiver Number of Bits 16
Interface Standard GENERAL PURPOSE
Number of Transceivers 1
Transmit Delay-Max 3.6 ns
Supply Voltage1-Nom 3.3V
Output Low Current-Max 0.008A
Out Swing-Min 0.247 V
High Level Input Current-Max 0.00002A
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
