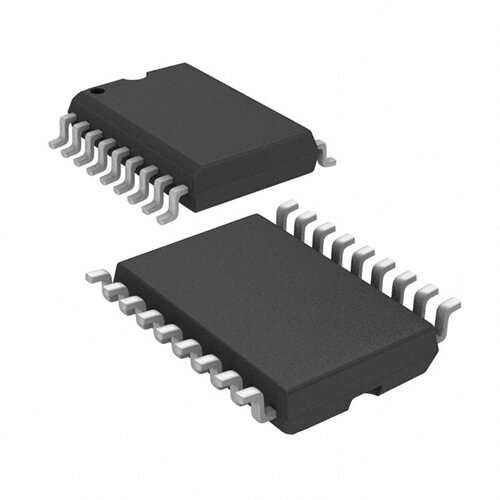

MAX222CDWRG4
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
IC TXRX DUAL RS232 5V 18-SOIC
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 1275
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.5mm
Technical
Number of Receivers 2
Output Low Current-Max 0.00004A
Supply Voltage1-Nom 5V
Transmit Delay-Max 3500 ns
Number of Transceivers 1
Driver Number of Bits 2
Interface IC Type LINE TRANSCEIVER
Input Characteristics SCHMITT TRIGGER
Output Polarity INVERTED
Differential Output NO
Data Rate 200 kbps
Logic Function Receiver, Transceiver
Nominal Supply Current 10mA
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Temperature Grade COMMERCIAL
Power Supplies 5V
Operating Supply Voltage 5V
Pin Count 18
Supply Voltage 5V
Number of Functions 2
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Line Driver or Receivers
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 2
JESD-609 Code e4
Packaging Tape and Reel
Physical
Number of Pins 18
Package / Case SOIC
Mount Surface Mount
