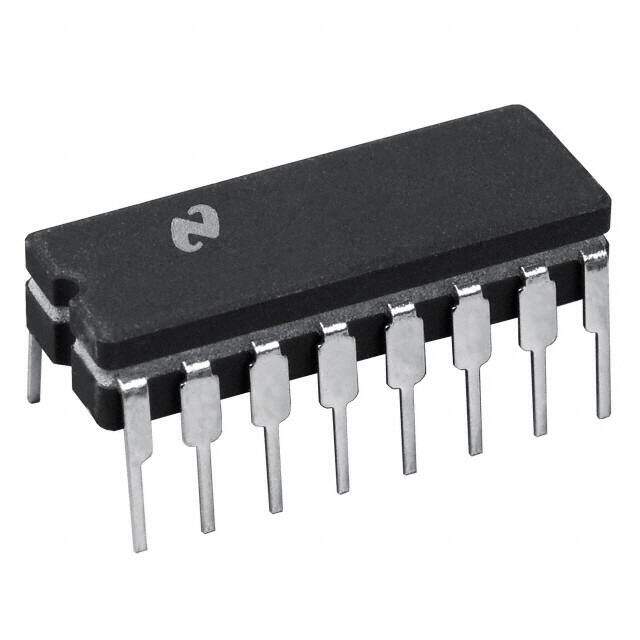

DS96F174CJ
RoHS
/
Package 16-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
Non-RoHS Compliant STANDARD Driver BIPOLAR Driver 0C~70C 15Mbps 19.94mm 50mA
PDF
/
Buying Options
Total Price: USD $16.11
Unit Price: USD $16.10915
≥1 USD $16.10915
≥10 USD $13.2183
≥100 USD $12.80505
≥500 USD $12.3918
≥1000 USD $11.97855
Inventory: 402
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 16-CDIP (0.300, 7.62mm)
Number of Pins 16
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Type Driver
Additional Feature LG-MAX
HTS Code 8542.39.00.01
Technology BIPOLAR
Voltage - Supply 4.75V~5.25V
Terminal Position DUAL
Number of Functions 4
Supply Voltage 5V
Terminal Pitch 2.54mm
Base Part Number DS96F174
Pin Count 16
Operating Supply Voltage 5V
Max Supply Current 50mA
Data Rate 15Mbps
Differential Output YES
Protocol RS422, RS485
Input Characteristics STANDARD
Number of Drivers/Receivers 4/0
Driver Number of Bits 4
Interface Standard EIA-422; EIA-485
Dimensions
Height Seated (Max) 5.08mm
Length 19.94mm
Width 7.62mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
