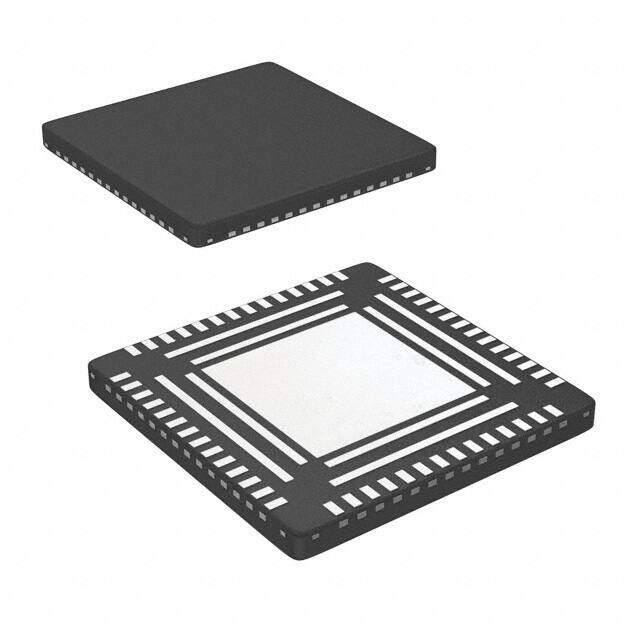

DP83847ALQA56A
RoHS
/
Package 56-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
Non-RoHS Compliant Transceiver CMOS QUAD Transceiver 0C~70C 100Mbps 120m 106mA
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.73975
≥1 USD $10.73975
≥10 USD $8.8122
≥100 USD $8.5367
≥500 USD $8.2612
≥1000 USD $7.9857
Inventory: 21327
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 56-WFQFN Exposed Pad
Number of Pins 56
Technical
Operating Temperature 0°C~70°C
Packaging Tray
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 65
ECCN Code EAR99
Type Transceiver
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Network Interfaces
Technology CMOS
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 235
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Base Part Number DP83847
Pin Count 65
JESD-30 Code S-XQCC-N65
Operating Supply Voltage 3.3V
Number of Channels 1
Nominal Supply Current 106mA
Cable Length 120m
Max Supply Current 106mA
Data Rate 100 Mbps
Protocol Ethernet
Number of Drivers/Receivers 1/1
Number of Transceivers 1
Dimensions
Height Seated (Max) 0.8mm
Width 9mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
