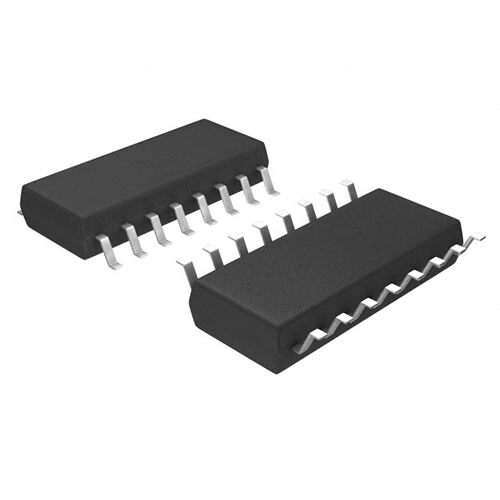

AM26C32CNSRG4
RoHS
/
Package SOP
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 Tape and Reel ACTIVE (Last Updated: 6days ago) Receiver interface driver 5.5V 15mA 200.686274mg 27ns
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7127
≥1 USD $6.7127
≥10 USD $5.5081
≥100 USD $5.3352
≥500 USD $5.16325
≥1000 USD $4.9913
Inventory: 1567
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Thickness 1.95mm
Width 5.3mm
Length 10.3mm
Height 2mm
Technical
Number of Receivers 4
Supply Voltage1-Nom 5V
Receive Delay-Max 27 ns
ESD Protection No
Number of Drivers 0
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Output Polarity TRUE
Differential Output NO
Output Characteristics 3-STATE
Data Rate 10 Mbps
Logic Function Receiver
Max Supply Current 15mA
Nominal Supply Current 15mA
Min Supply Voltage 4.5V
Max Supply Voltage 5.5V
Temperature Grade COMMERCIAL
Power Supplies 5V
Operating Supply Voltage 5V
Pin Count 16
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 4
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Min Operating Temperature -40°C
Max Operating Temperature 125°C
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Packaging Tape and Reel
Physical
Weight 200.686274mg
Number of Pins 16
Surface Mount YES
Package / Case SOP
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
