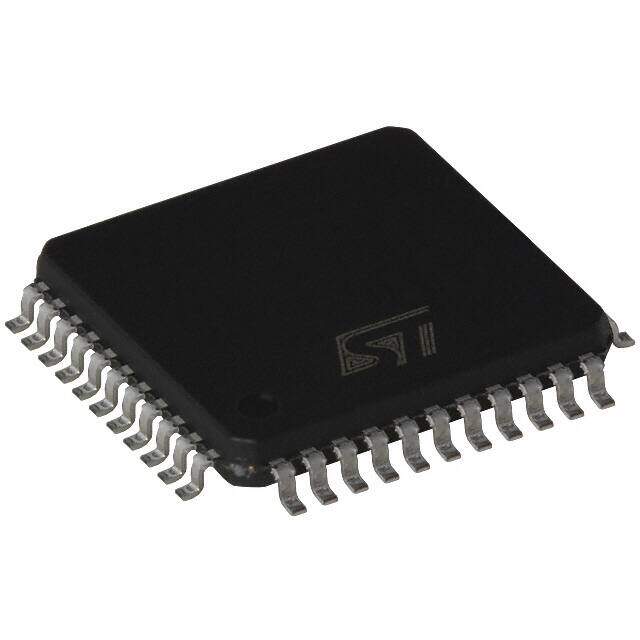

ST7538Q
RoHS
RoHS compliant
RoHS compliantPackage 44-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 ST7538 Tray Nickel/Palladium/Gold (Ni/Pd/Au) interface receiver 12V 370mA 1.4mm 4.8kbps
PDF
/
Buying Options
Total Price: USD $45.64
Unit Price: USD $45.6418
≥1 USD $45.6418
≥10 USD $37.44995
≥100 USD $36.27955
≥500 USD $35.10915
≥1000 USD $33.93875
Inventory: 4972
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 44-LQFP Exposed Pad
Number of Pins 44
Technical
Operating Temperature -40°C~85°C
Packaging Tray
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 44
ECCN Code EAR99
Type Transceiver
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code 8542.39.00.01
Subcategory Modems
Technology BCDMOS
Voltage - Supply 4.75V~5.25V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number ST7538
Pin Count 44
Operating Supply Voltage 12V
Power Supplies 59V
Operating Supply Current 5mA
Nominal Supply Current 370mA
Data Rate 4.8 kbps
Number of Drivers/Receivers 1/1
Duplex Half
Dimensions
Height 1.4mm
Length 10mm
Width 10mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
