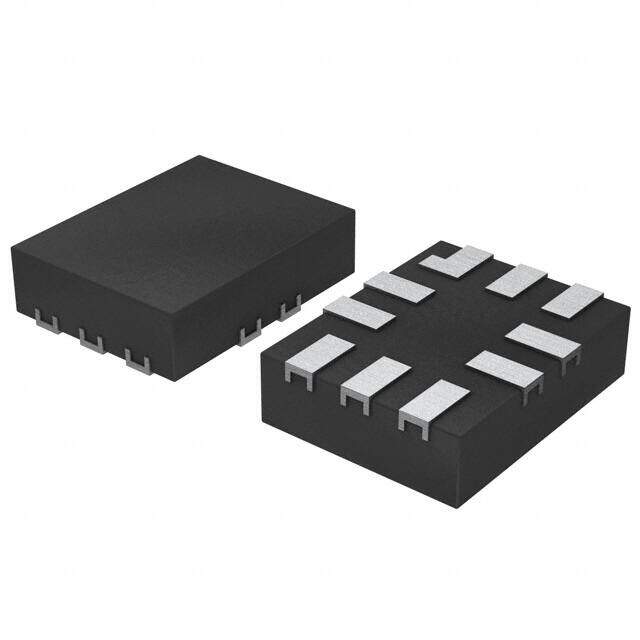

ST2G3236QTR
RoHS
RoHS compliant
RoHS compliantPackage 10-UFQFN
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
e4 ST2G323 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) interface receiver 1.8V 500nA 7.002332mg 6.2ns
PDF
/
Buying Options
Total Price: USD $0.04
Unit Price: USD $0.03895
≥1 USD $0.03895
≥10 USD $0.0323
≥100 USD $0.03135
≥500 USD $0.0304
≥1000 USD $0.02945
≥10000 USD $0.0266
Inventory: 115805
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-UFQFN
Number of Pins 10
Weight 7.002332mg
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
Type Transceiver
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method TAPE AND REEL
Technology CMOS
Voltage - Supply 1.4V~3.6V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number ST2G323
Pin Count 10
Polarity Non-Inverting
Supply Voltage-Max (Vsup) 3.6V
Number of Channels 2
Number of Circuits 1
Number of Ports 2
Max Supply Current 500nA
Number of Bits 2
Propagation Delay 6.2 ns
Quiescent Current 500μA
Turn On Delay Time 6.2 ns
Family 2G
Logic Function Transceiver, Translator
Data Rate 380Mbps
Direction Bidirectional
Output Characteristics 3-STATE
Number of Drivers/Receivers 1/1
Prop. Delay@Nom-Sup 5.8 ns
High Level Output Current -20mA
Low Level Output Current 20mA
Dimensions
Height Seated (Max) 0.55mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
