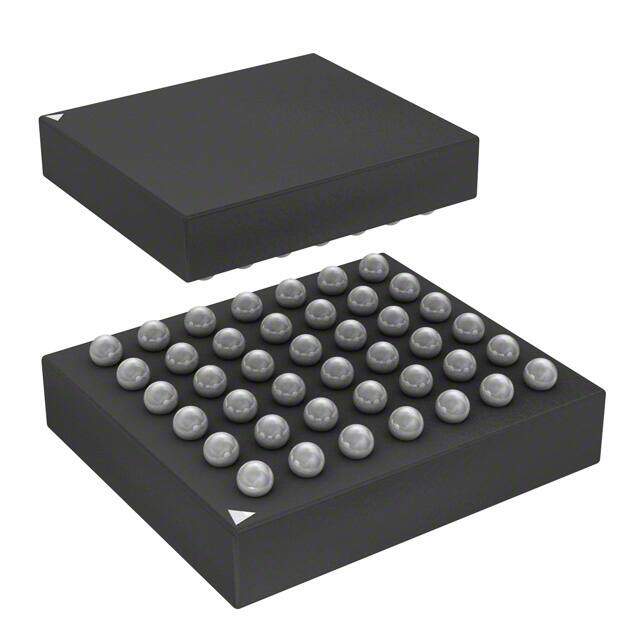

74VCXH1632245TBR
RoHS
/
Package 42-TFBGA
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
74VCXH1632245 Tape & Reel (TR) 74VCXH Obsolete interface receiver 2.5V -8mA 4mm 6.2ns
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.44217
≥1 USD $1.44217
≥10 USD $1.387954
Inventory: 1175
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 42-TFBGA
Number of Pins 42
Technical
Operating Temperature -40°C~84°C
Packaging Tape & Reel (TR)
Series 74VCXH
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 42
Type Transceiver
Packing Method TAPE AND REEL
Max Power Dissipation 400mW
Technology CMOS
Voltage - Supply 1.6V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 2.5V
Terminal Pitch 0.5mm
Base Part Number 74VCXH1632245
Pin Count 42
Polarity Non-Inverting
Supply Voltage-Max (Vsup) 3.6V
Number of Circuits 2
Load Capacitance 30pF
Number of Ports 2
Number of Bits 8
Propagation Delay 6.2 ns
Family ALVC/VCX/A
Direction Bidirectional
Output Characteristics 3-STATE WITH SERIES RESISTOR
Max I(ol) 0.006 A
High Level Output Current -8mA
Low Level Output Current 8mA
Dimensions
Height Seated (Max) 1.16mm
Length 4mm
Width 3.5mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
