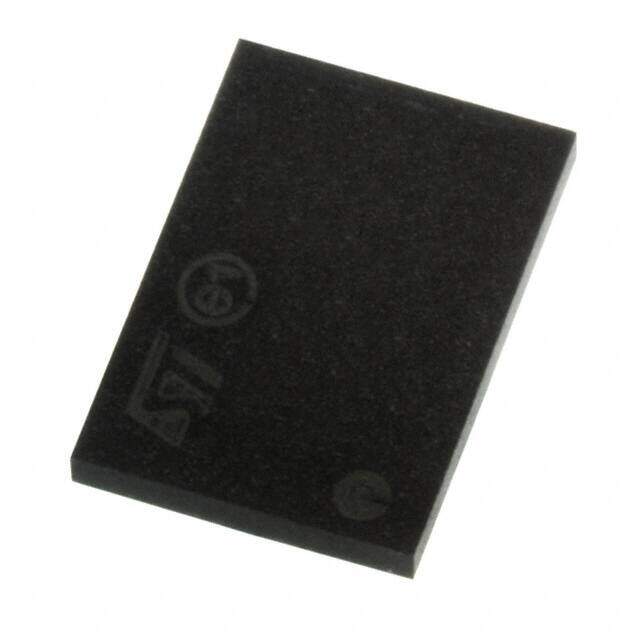

74VCX1632245LBR
RoHS
RoHS compliant
RoHS compliantPackage 54-TFBGA
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
e1 74VCX1632245 Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) interface driver 1.8V -18mA 5.5mm 6.2ns
PDF
/
Buying Options
Total Price: USD $2.11
Unit Price: USD $2.109
≥1 USD $2.109
≥10 USD $1.7309
≥100 USD $1.67675
≥500 USD $1.6226
≥1000 USD $1.56845
Inventory: 66091
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 54-TFBGA
Number of Pins 54
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 74VCX
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 54
Type Transceiver
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Packing Method TAPE AND REEL
Max Power Dissipation 400mW
Technology CMOS
Voltage - Supply 1.65V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.8V
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number 74VCX1632245
Pin Count 54
Polarity Non-Inverting
Supply Voltage-Min (Vsup) 1.65V
Number of Channels 16
Number of Circuits 2
Load Capacitance 30pF
Number of Ports 2
Output Current 8mA
Number of Bits 8
Propagation Delay 6.2 ns
Turn On Delay Time 8.3 ns
Family ALVC/VCX/A
Direction Bidirectional
Output Characteristics 3-STATE WITH SERIES RESISTOR
Max I(ol) 0.006 A
High Level Output Current -18mA
Low Level Output Current 18mA
Dimensions
Width 5.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
