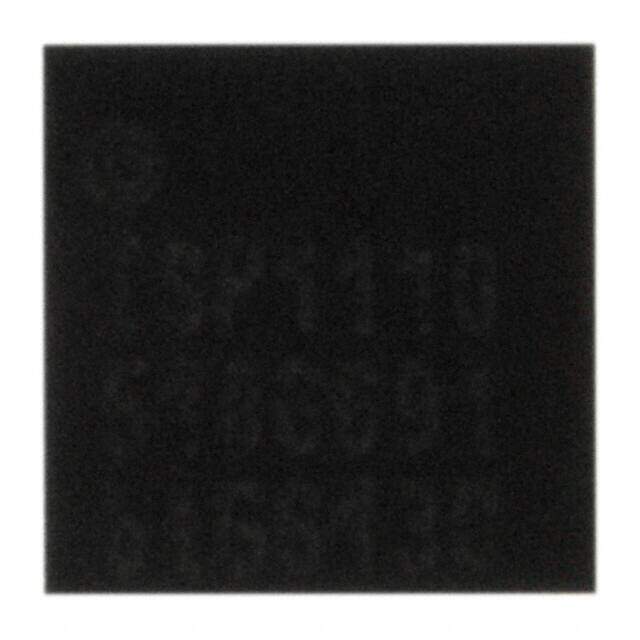

ISP1110VHTS
RoHS
/
Package 16-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
S-PBCC-B16 Tape & Reel (TR) USB 2.0 GENERAL PURPOSE interface driver 700mV 0.002A 3mm 15ns
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.43912
≥100 USD $0.430496
≥500 USD $0.422189
≥1000 USD $0.413741
Inventory: 1142
Minimum: 1
-
+
Technical Details
Technical
Duplex Half
Receiver Hysteresis 700mV
Interface Standard GENERAL PURPOSE
Receive Delay-Max 15 ns
Transmit Delay-Max 18 ns
Supply Voltage1-Nom 5V
Output Low Current-Max 0.002A
Receiver Number of Bits 1
Driver Number of Bits 1
Number of Drivers/Receivers 1/1
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Protocol USB 2.0
Differential Output YES
Data Rate 12Mbps
Supply Current-Max 8mA
Power Supplies 1.82.85V
Qualification Status Not Qualified
JESD-30 Code S-PBCC-B16
Pin Count 16
Reach Compliance Code unknown
Terminal Pitch 0.5mm
Supply Voltage 1.8V
Number of Functions 1
Terminal Form BUTT
Terminal Position BOTTOM
Voltage - Supply 4V~5.5V
Technology CMOS
Subcategory Line Driver or Receivers
HTS Code 8542.39.00.01
Type Transceiver
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Dimensions
Height Seated (Max) 0.8mm
Length 3mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
Physical
Package / Case 16-WFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
