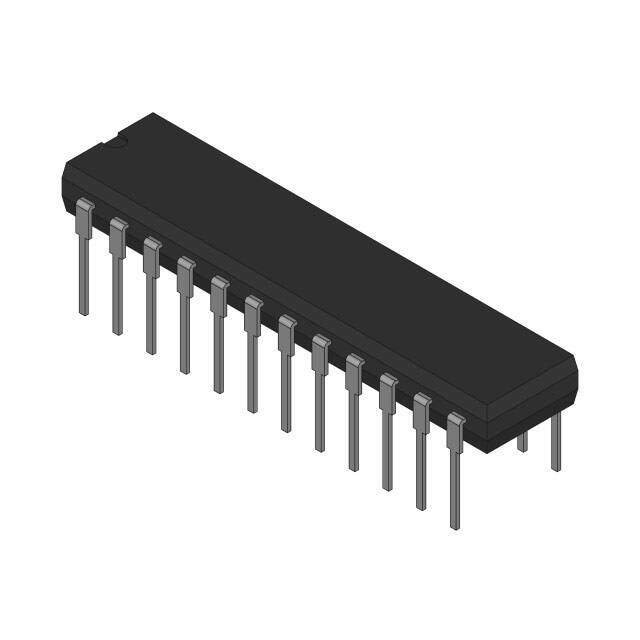

SP208EEP-L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
R-PDIP-T24 24-DIP EIA-232; V.28 TIN interface driver 5V 31.875mm 1500ns 120Kbps
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
Inventory: 1243
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Surface Mount NO
Supplier Device Package 24-DIP
Technical
Operating Temperature -40°C~85°C
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) NOT APPLICABLE
Number of Terminations 24
Type Transceiver
Terminal Finish TIN
Technology CMOS
Voltage - Supply 5V
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT APPLICABLE
Number of Functions 4
Supply Voltage 5V
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Pin Count 24
JESD-30 Code R-PDIP-T24
Data Rate 120Kbps
Differential Output NO
Input Characteristics SCHMITT TRIGGER
Number of Drivers/Receivers 4/4
Driver Number of Bits 4
Receiver Number of Bits 4
Interface Standard EIA-232; V.28
Receive Delay-Max 1500 ns
Dimensions
Height Seated (Max) 5.334mm
Length 31.875mm
Width 7.62mm
Compliance
RoHS Status RoHS Compliant
