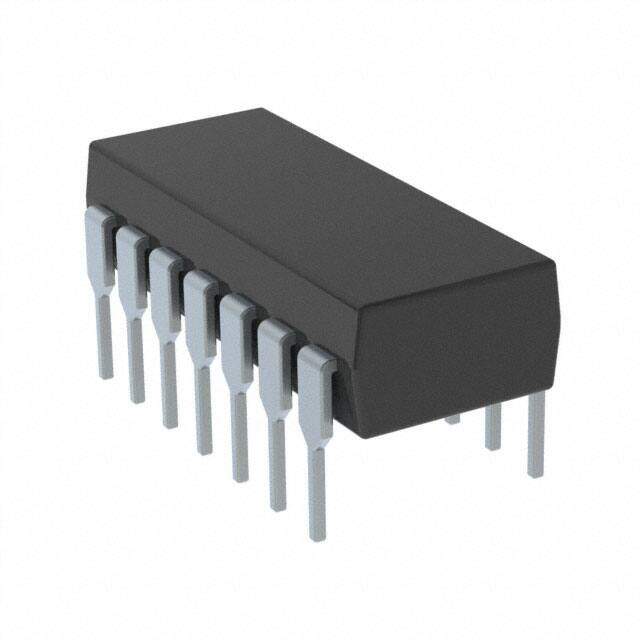

SP1491ECP-L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
R-PDIP-T14 14-DIP EIA-422; EIA-485 TIN interface receiver 5V 19.05mm 50ns 20Mbps
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
Inventory: 1109
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7.62mm
Length 19.05mm
Height Seated (Max) 5.334mm
Technical
Transmit Delay-Max 40 ns
Receive Delay-Max 50 ns
Interface Standard EIA-422; EIA-485
Receiver Number of Bits 1
Driver Number of Bits 1
Number of Drivers/Receivers 1/1
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Differential Output YES
Data Rate 20Mbps
Qualification Status COMMERCIAL
JESD-30 Code R-PDIP-T14
Pin Count 14
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT APPLICABLE
Terminal Position DUAL
Voltage - Supply 5V
Technology BICMOS
Terminal Finish TIN
Type Transceiver
Number of Terminations 14
Moisture Sensitivity Level (MSL) NOT APPLICABLE
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Operating Temperature 0°C~70°C
Physical
Supplier Device Package 14-DIP
Surface Mount NO
Mounting Type Through Hole
