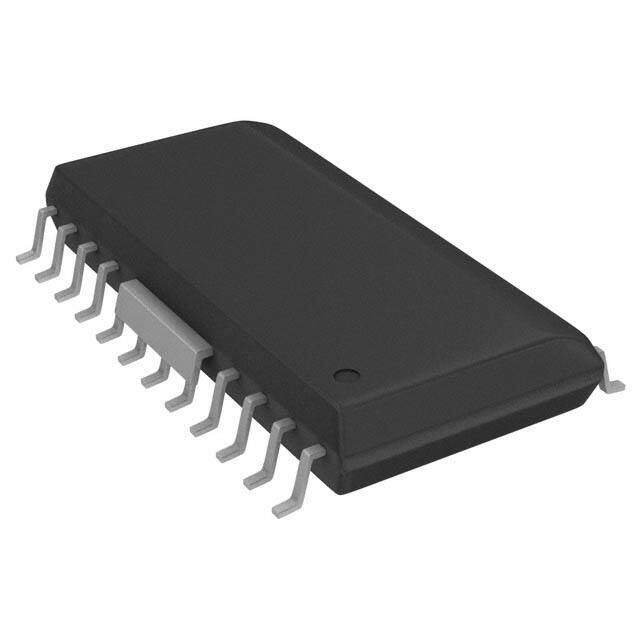

AD8016ARB-REEL
RoHS
/
Package 24-SOIC (0.295, 7.50mm Width), 18 Leads, Fused Leads
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
R-PDSO-G24 Tape & Reel (TR) xDSL TIN LEAD interface driver 3000muV 15.4mm 66dB 85C
PDF
/
Buying Options
Total Price: USD $3.05
Unit Price: USD $3.0536
≥1 USD $3.0536
Inventory: 37457
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 7.5mm
Length 15.4mm
Height Seated (Max) 2.65mm
Technical
Input Offset Voltage-Max 3000μV
Neg Supply Voltage-Max (Vsup) -13.2V
Number of Drivers/Receivers 2/0
Supply Voltage Limit-Max 13.2V
Protocol xDSL
Neg Supply Voltage-Nom (Vsup) -6V
Common Mode Rejection Ratio 66 dB
Slew Rate 300 V/us
Temperature Grade INDUSTRIAL
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
JESD-30 Code R-PDSO-G24
Pin Count 24
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Terminal Pitch 1.27mm
Supply Voltage 6V
Number of Functions 2
Peak Reflow Temperature (Cel) NOT APPLICABLE
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3V~13V
Subcategory Operational Amplifier
Terminal Finish TIN LEAD
Type Driver
Number of Terminations 24
Moisture Sensitivity Level (MSL) 5 (48 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 24-SOIC (0.295, 7.50mm Width), 18 Leads, Fused Leads
Mounting Type Surface Mount
