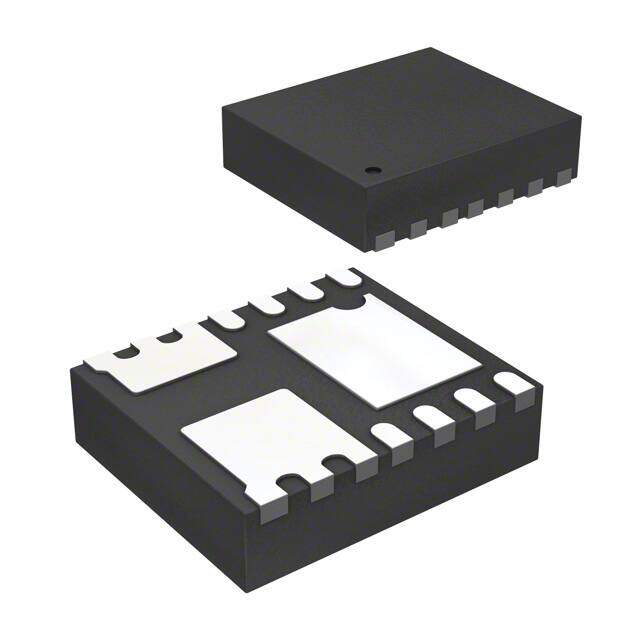

MIC2550AYML25-TR image
Favorite
MIC2550AYML25-TR image
Favorite

MIC2550AYML25-TR

Microchip Technology
RoHS
RoHS RoHS compliant
Package 14-VFQFN Exposed Pad, 14-MLF?
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description MIC2550A Tape & Reel (TR) USB 2.0 GENERAL PURPOSE interface driver 5.25V 3mm 12Mbps -40C~85C
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.163229
≥1 USD $1.163229
≥200 USD $0.450325
≥500 USD $0.43457
≥1000 USD $0.426693
Inventory: 1620
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-VFQFN Exposed Pad, 14-MLF?
Number of Pins 16

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2005
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Type Transceiver
Voltage - Supply 4V~5.25V
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Base Part Number MIC2550A
Operating Supply Voltage 5.25V
Number of Channels 1
Data Rate 12Mbps
Differential Output YES
Protocol USB 2.0
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Max Dual Supply Voltage 5.25V
Number of Drivers/Receivers 1/1
Driver Number of Bits 1
Receiver Number of Bits 1
Duplex Half
Receiver Hysteresis 200mV
Interface Standard GENERAL PURPOSE
Simplex/Duplex Half Duplex

Dimensions

Length 3mm
Width 3mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
