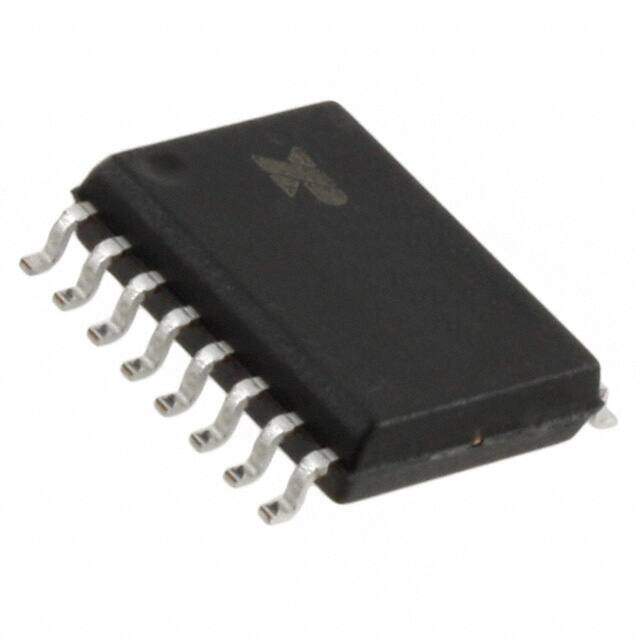

SP3232ECT-L/TR
RoHS
RoHS compliant
RoHS compliantPackage 16-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
R-PDSO-G16 Tape & Reel (TR) RS232 EIA-232; EIA-232-D; EIA-232-F; V.24; V.28; EIA-562; TIA-232; TIA-232-F; TIA-562 interface driver 300mV 10.3mm 235Kbps 0C~70C
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.20648
≥100 USD $1.144704
≥500 USD $0.940368
≥1000 USD $0.879014
≥3000 USD $0.776811
Inventory: 1250
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Length 10.3mm
Height Seated (Max) 2.65mm
Technical
Interface Standard EIA-232; EIA-232-D; EIA-232-F; V.24; V.28; EIA-562; TIA-232; TIA-232-F; TIA-562
Receiver Hysteresis 300mV
Duplex Full
Receiver Number of Bits 2
Driver Number of Bits 2
Number of Drivers/Receivers 2/2
Input Characteristics SCHMITT TRIGGER
Protocol RS232
Differential Output NO
Data Rate 235Kbps
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Number of Functions 2
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 3V~5.5V
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
Type Transceiver
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Surface Mount YES
Package / Case 16-SOIC (0.295, 7.50mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
