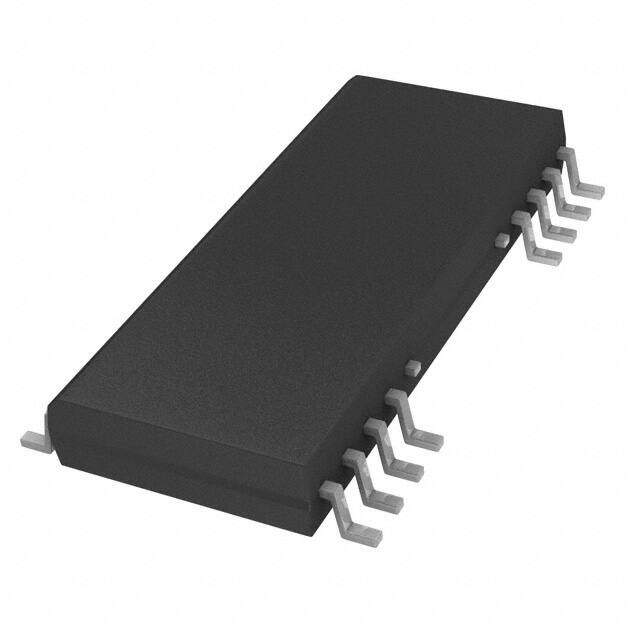

MAX3535ECWI+T
RoHS
RoHS compliant
RoHS compliantPackage 28-SOIC (0.295, 7.50mm Width), 16 Leads
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
EAR99 MAX3535 Tape & Reel (TR) RS422RS485 interface transceiver 1.5V 0.004A 17.9mm 855ns
PDF
/
Buying Options
Total Price: USD $12.65
Unit Price: USD $12.6544
≥1 USD $12.6544
≥10 USD $11.63008
≥100 USD $11.148192
≥500 USD $9.822472
≥1000 USD $9.34039
≥3000 USD $8.737802
Inventory: 1181
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295, 7.50mm Width), 16 Leads
Surface Mount YES
Number of Pins 28
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2009
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
ECCN Code EAR99
Type Transceiver
Terminal Finish Tin (Sn)
HTS Code 8542.39.00.01
Subcategory Line Driver or Receivers
Technology BICMOS
Voltage - Supply 3V~5.5V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MAX3535
Pin Count 28
Qualification Status Not Qualified
Power Supplies 3.35V
Supply Current-Max 70mA
Data Rate 1Mbps
Differential Output YES
Protocol RS422, RS485
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Number of Drivers/Receivers 1/1
Driver Number of Bits 1
Receiver Number of Bits 1
Duplex Full
Receiver Hysteresis 30mV
Interface Standard EIA-422; EIA-485
Receive Delay-Max 855 ns
Transmit Delay-Max 1560 ns
Output Low Current-Max 0.004A
Out Swing-Min 1.5 V
Dimensions
Height Seated (Max) 2.65mm
Length 17.9mm
Width 7.5mm
Compliance
RoHS Status ROHS3 Compliant
