88E1512-A0-NNP2I000
RoHS
RoHS compliant

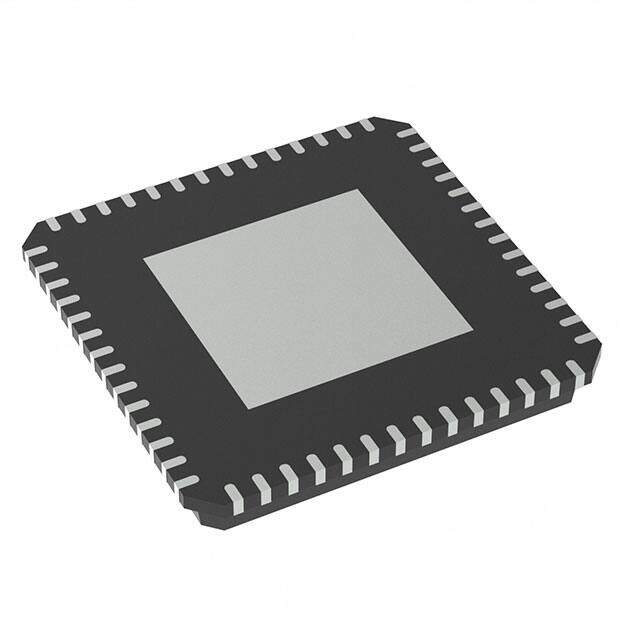

RoHS compliantPackage 56-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
S-XQCC-N56 56-VFQFN Exposed Pad IEEE 802.3IEEE 1588 Alaska? interface driver 3.3V 1mm 10Mbps 100Mbps 1Gbps -40C~85C TA
PDF
/
Buying Options
Total Price: USD $8.91
Unit Price: USD $8.91056
≥1 USD $8.91056
≥10 USD $8.40619
≥100 USD $7.93037
≥500 USD $7.48148
≥1000 USD $7.058
≥3000 USD $6.65849
Inventory: 12772
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 1mm
Technical
Ambient Temperature Range High 85°C
Max Junction Temperature (Tj) 125°C
Simplex/Duplex Duplex
Number of Transceivers 1
Duplex Full, Half
Number of Drivers/Receivers 4/4
Protocol IEEE 802.3, IEEE 1588
Data Rate 10Mbps, 100Mbps, 1Gbps
Interface Ethernet
Number of Channels 4
JESD-30 Code S-XQCC-N56
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 1.71V~1.89V 2.38V~2.62V 3.14V~3.46V
Type Transceiver
Number of Terminations 56
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series Alaska?
Published 2011
Operating Temperature -40°C~85°C TA
Physical
Package / Case 56-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
