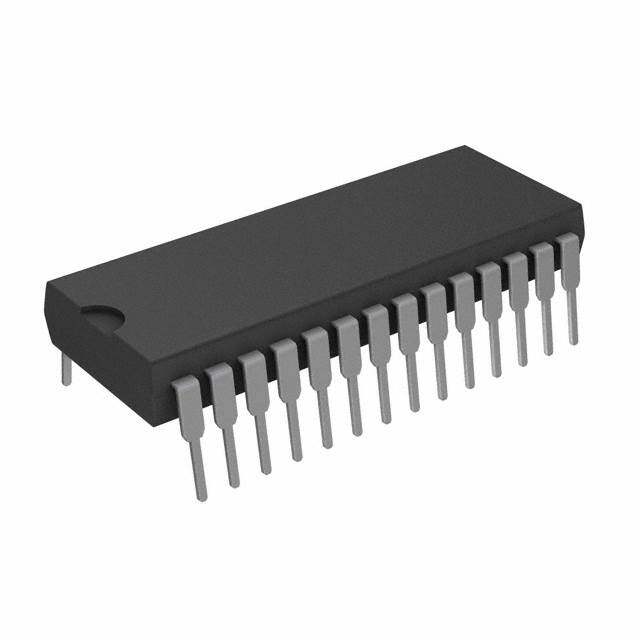

LTC1349CNW#PBF
RoHS
RoHS compliant
RoHS compliantPackage 28-DIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Interface - Drivers, Receivers, Transceivers
Description
R-PDIP-T28 LTC1349 Tube RS232 interface receiver 10V 0.000005A 36.83mm 800ns
PDF
/
Buying Options
Total Price: USD $7.74
Unit Price: USD $7.740858
≥1 USD $7.740858
≥200 USD $2.996038
≥500 USD $2.891006
≥1000 USD $2.83849
Inventory: 1479
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 15.24mm
Length 36.83mm
Height Seated (Max) 4.318mm
Technical
High Level Input Current-Max 0.000005A
Out Swing-Min 10 V
Output Low Current-Max 0.0016A
Transmit Delay-Max 3500 ns
Receive Delay-Max 800 ns
Interface Standard EIA-232
Receiver Hysteresis 400mV
Duplex Full
Receiver Number of Bits 5
Driver Number of Bits 3
Number of Drivers/Receivers 3/5
Input Characteristics SCHMITT TRIGGER
Protocol RS232
Differential Output NO
Data Rate 120KBd
Supply Current-Max 1.5mA
Power Supplies 5V
Qualification Status Not Qualified
JESD-30 Code R-PDIP-T28
Pin Count 28
Base Part Number LTC1349
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 3
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 4.5V~5V
Technology CMOS
Subcategory Line Driver or Receivers
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
Type Transceiver
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2002
Packaging Tube
Operating Temperature 0°C~70°C
Physical
Surface Mount NO
Package / Case 28-DIP (0.600, 15.24mm)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
