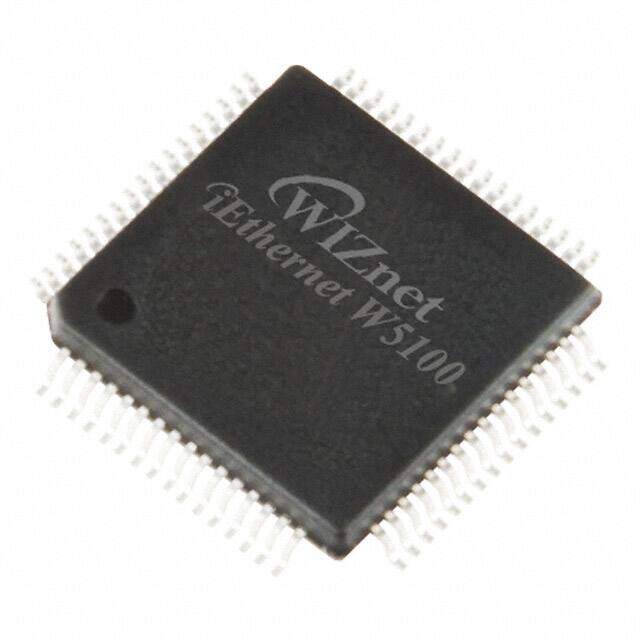

W5100
RoHS
RoHS compliant
RoHS compliantPackage 80-LQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
Tray 2011 SPI 10/100Base-T/TX PHY interface controller 3V~3.6V 1.4mm 5muA 100Mbps
PDF
/
Buying Options
Total Price: USD $4.37
Unit Price: USD $4.3736
≥1 USD $4.3736
≥10 USD $3.94944
≥100 USD $3.765696
≥500 USD $3.269728
≥1000 USD $3.234
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 10mm
Height 1.4mm
Technical
Standards 10/100 Base-T/TX PHY
Simplex/Duplex Full Duplex
Protocol Ethernet
Data Rate 100 Mbps
Supply Current-Max 183mA
Operating Supply Current 5μA
Interface SPI
Number of Channels 4
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Function Controller
Supply Voltage 3.3V
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 3V~3.6V
Technology CMOS
Number of Terminations 80
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 639.990485mg
Number of Pins 80
Package / Case 80-LQFP
Mount Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
