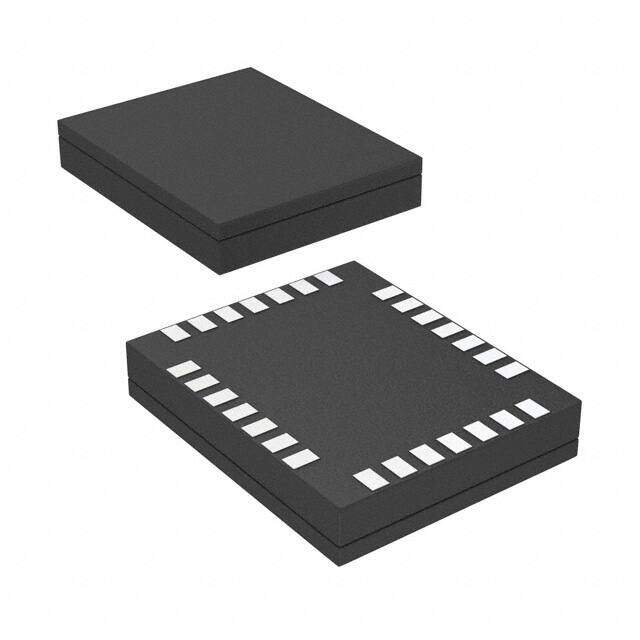

USBN9604SLBX/NOPB image
Favorite
USBN9604SLBX/NOPB image
Favorite

USBN9604SLBX/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 28-TFQFN, CSP
Category Integrated Circuits (ICs) / Interface - Controllers
Description USBN9604 Tape & Reel (TR) 8542.31.00.01 Parallel interface controller 3V~5.5V 5.5mm 30mA 0C~70C
PDF
/
Buying Options
Total Price: USD $2.96
Unit Price: USD $2.9568
≥1 USD $2.9568
Inventory: 1949
Minimum: 1
-
+

Technical Details

Physical

Package / Case 28-TFQFN, CSP
Surface Mount YES
Number of Pins 28

Technical

Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
JESD-609 Code e4
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Terminal Finish NICKEL GOLD
HTS Code 8542.31.00.01
Technology CMOS
Voltage - Supply 3V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Terminal Pitch 0.5mm
Base Part Number USBN9604
Function Controller
Interface Parallel
Clock Frequency 24MHz
Current - Supply 30mA
Address Bus Width 8
Protocol USB
External Data Bus Width 8
Standards USB 1.0 and 1.1

Dimensions

Height Seated (Max) 1.1mm
Length 5.5mm
Width 4.5mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
