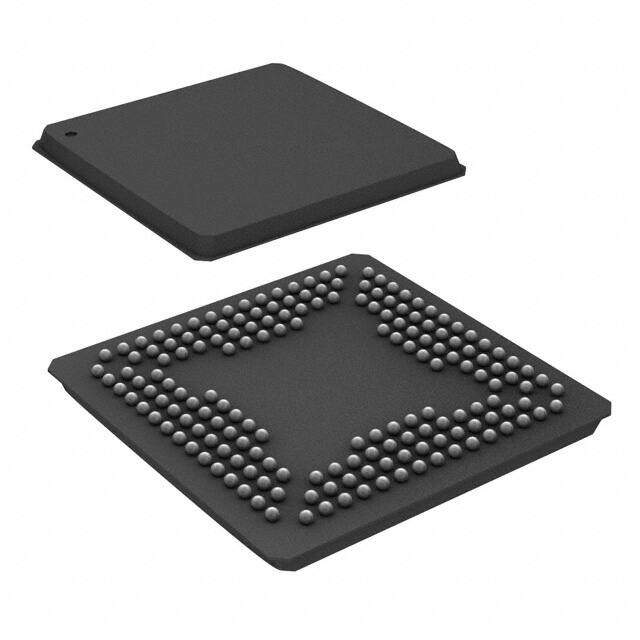

TSB43CA42ZGW
RoHS
RoHS compliant
RoHS compliantPackage 176-LFBGA
Category Integrated Circuits (ICs) / Interface - Controllers
Description
ROHS3Compliant BOTTOM SERIAL IO/COMMUNICATION CONTROLLER SERIAL COMMERCIAL interface controller 24.576MHz 70C 400Mbps 1.4mm
PDF
/
Buying Options
Total Price: USD $19.76
Unit Price: USD $19.756
≥1 USD $19.756
Inventory: 1192
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Package / Case 176-LFBGA
Surface Mount YES
Number of Pins 176
Weight 487.810244mg
Technical
Packaging Tray
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Data Transfer Rate-Max 50 MBps
Bus Compatibility 68000; MPC850
Standards IEEE 1394-1995, 1394a-2000
Number of Serial I/Os 2
Low Power Mode YES
Boundary Scan YES
Protocol IEEE 1394
Data Rate 400 Mbps
Clock Frequency 24.576MHz
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Number of I/O 11
Interface Parallel
Temperature Grade COMMERCIAL
Power Supplies 3.3V
Function Link Layer Controller
Base Part Number TSB43CA42
Terminal Pitch 0.9mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 3.3V
Technology CMOS
Subcategory Bus Controllers
HTS Code 8542.31.00.01
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 176
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 900μm
Width 15mm
Length 15mm
Height 1.4mm
