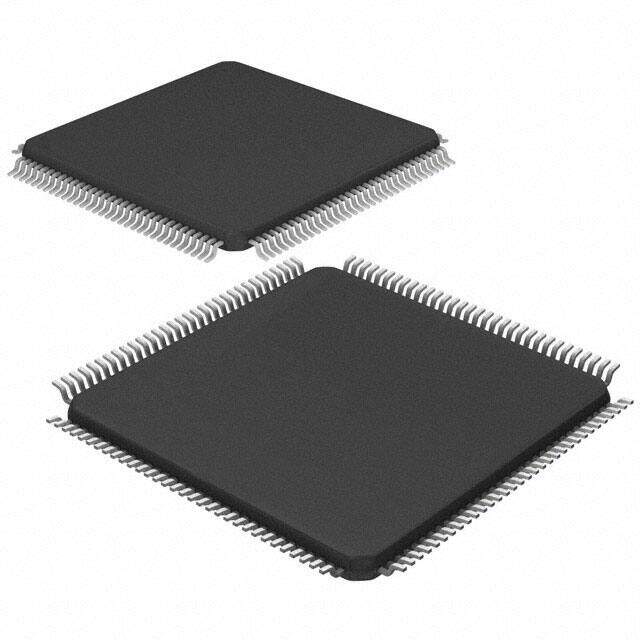

TSB43AB23PDTG4
RoHS
RoHS compliant
RoHS compliantPackage 128-TQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
TSB43AB23 ACTIVE (Last Updated: 1week ago) Tray EAR99 interface controller 3V~3.6V 1.2mm 158mA 400Mbps
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 302
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 1mm
Width 14mm
Length 14mm
Height 1.2mm
Technical
Data Transfer Rate-Max 50 MBps
Bus Compatibility PCI
Standards IEEE 1394-1995, 1394a-2000, OHCI, Firewire?, i.Link?
Number of Serial I/Os 1
Low Power Mode YES
Boundary Scan NO
Protocol IEEE 1394
Data Rate 400 Mbps
Clock Frequency 24.576MHz
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Nominal Supply Current 158mA
Number of I/O 2
Interface PCI
Power Supplies 1.833.33.3/5V
Function Physical Layer Controller
Base Part Number TSB43AB23
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 3V~3.6V
Technology CMOS
Subcategory Bus Controllers
HTS Code 8542.39.00.01
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 128
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tray
Operating Temperature 0°C~70°C
Physical
Weight 503.487531mg
Number of Pins 128
Package / Case 128-TQFP
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
