TSB43AB21PDT
RoHS
RoHS compliant

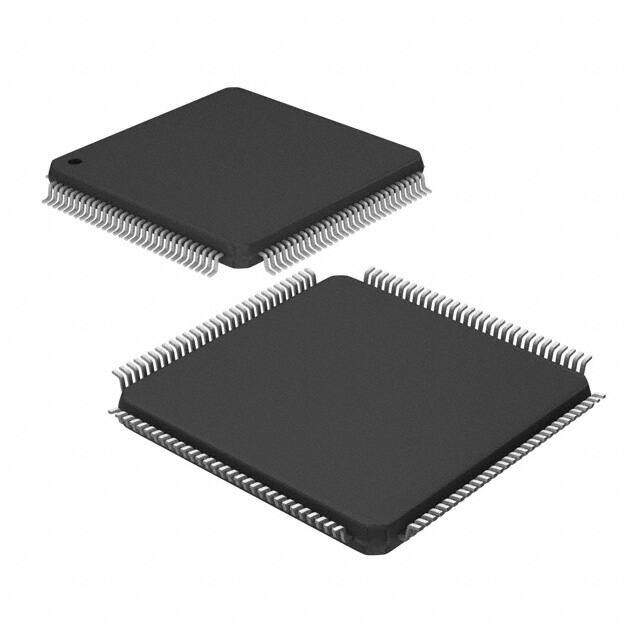

RoHS compliantPackage 128-TQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
ROHS3Compliant QUAD SERIAL IO/COMMUNICATION CONTROLLER SERIAL COMMERCIAL IEEE 1394 Physical Layer Controller 24.576MHz 70C 50MBps 14mm
PDF
/
Buying Options
Total Price: USD $5.66
Unit Price: USD $5.6584
≥1 USD $5.6584
Inventory: 1052
Minimum: 1
-
+
Technical Details
Physical
Package / Case 128-TQFP
Surface Mount YES
Number of Pins 128
Weight 503.487531mg
Technical
Packaging Tray
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 128
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code 8542.31.00.01
Subcategory Bus Controllers
Technology CMOS
Voltage - Supply 3.3V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Base Part Number TSB43AB21
Function Physical Layer Controller
Operating Temperature (Max) 70°C
Power Supplies 1.833.33.3/5V
Temperature Grade COMMERCIAL
Interface PCI
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Clock Frequency 24.576MHz
Address Bus Width 32
Protocol IEEE 1394
Boundary Scan NO
Low Power Mode YES
External Data Bus Width 32
Number of Serial I/Os 2
Standards IEEE 1394-1995, 1394a-2000, OHCI, Firewire?, i.Link?
Bus Compatibility PCI
Data Transfer Rate-Max 50 MBps
Dimensions
Height Seated (Max) 1.05mm
Length 14mm
Width 14mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
