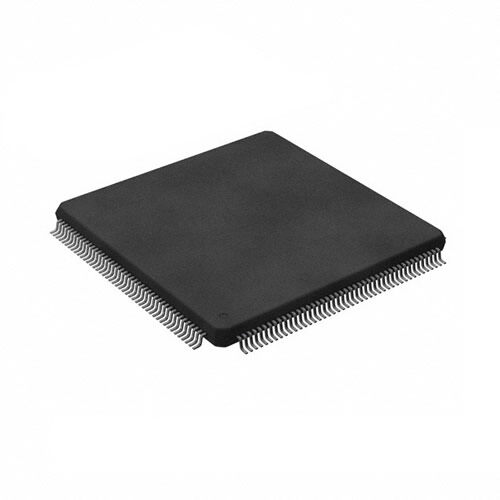

TSB12LV21BPGFG4
RoHS
/
Package LQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
LQFP EAR99 Parallel ALSO REQUIRES 4.5TO 5.5VOLTS interface controller 3.3/5V 1.4mm 50MBps 70C
PDF
/
Buying Options
Total Price: USD $10.67
Unit Price: USD $10.67325
≥1 USD $10.67325
≥10 USD $8.75805
≥100 USD $8.48445
≥500 USD $8.21085
≥1000 USD $7.93725
Inventory: 1188
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case LQFP
Number of Pins 176
Weight 1.896186g
Technical
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 3
Number of Terminations 176
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Additional Feature ALSO REQUIRES 4.5 TO 5.5 VOLTS
HTS Code 8542.39.00.01
Subcategory Bus Controllers
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Pin Count 176
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3.3/5V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 3V
Interface Parallel
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Clock Frequency 33MHz
Boundary Scan NO
Low Power Mode NO
Number of Serial I/Os 1
Bus Compatibility PCI
Data Transfer Rate-Max 50 MBps
Number of DMA Channels 5
Communication Protocol IEEE1394
Dimensions
Height 1.4mm
Length 24mm
Width 24mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
