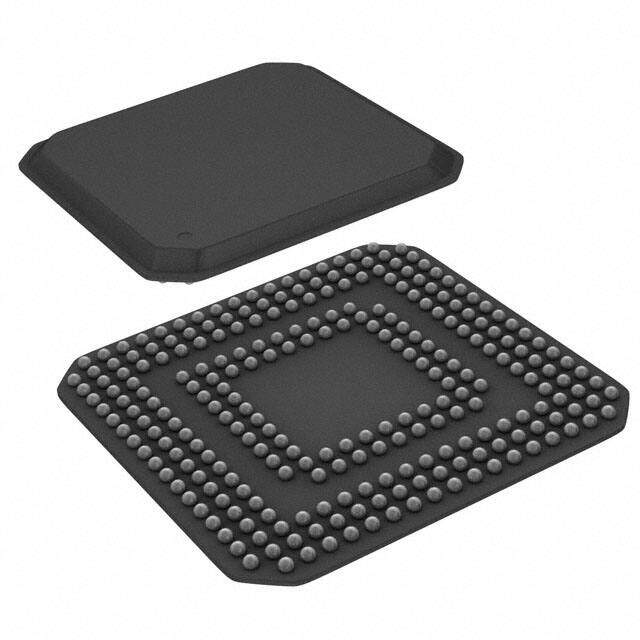

PCI7515GHK image
Favorite
PCI7515GHK image
Favorite

PCI7515GHK

Texas Instruments
RoHS
RoHS RoHS compliant
Package 257-LFBGA
Category Integrated Circuits (ICs) / Interface - Controllers
Description ROHS3Compliant BOTTOM CMOS BALL PCI CardBus Controller 33.33MHz 0C~70C 132MBps 16mm
PDF
/
Buying Options
Total Price: USD $6.04
Unit Price: USD $6.0368
≥1 USD $6.0368
Inventory: 1986
Minimum: 1
-
+

Technical Details

Physical

Package / Case 257-LFBGA
Surface Mount YES
Number of Pins 257

Technical

Operating Temperature 0°C~70°C
Packaging Tube
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 257
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Technology CMOS
Voltage - Supply 3V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PCI7515
Function Controller
Qualification Status Not Qualified
Power Supplies 1.53.35V
Interface PCI
Clock Frequency 33.33MHz
Address Bus Width 32
Protocol PCI CardBus
External Data Bus Width 32
Standards IEEE 1394a-2000, OHCI
Bus Compatibility PCI
Data Transfer Rate-Max 132 MBps

Dimensions

Height Seated (Max) 1.4mm
Length 16mm
Width 16mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
