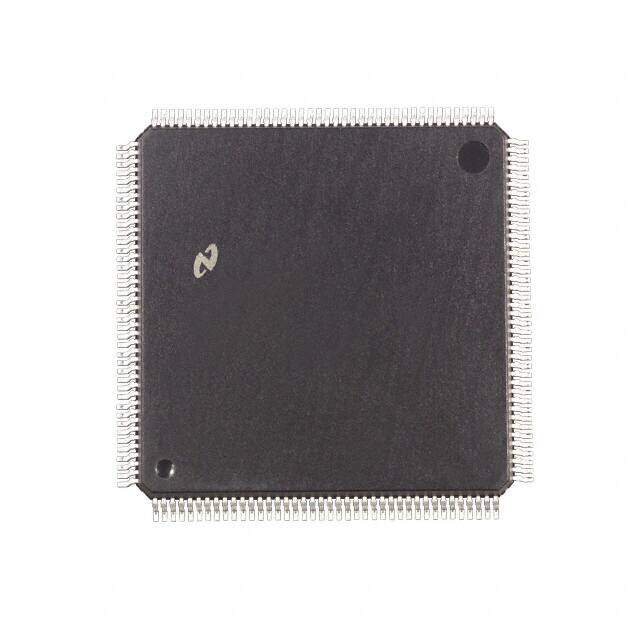

DP83934AVQB
RoHS
/
Package 160-BQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
DP83934 Tube S-PQFP-G16 NRZ; BIPH-LEVEL(MANCHESTER) interface controller 4.75V~5.25V 28mm 140mA 1.25MBps
PDF
/
Buying Options
Total Price: USD $13.44
Unit Price: USD $13.4425
≥1 USD $13.4425
≥10 USD $11.0295
≥100 USD $10.6856
≥500 USD $10.34075
≥1000 USD $9.9959
Inventory: 1590
Minimum: 1
-
+
Technical Details
Physical
Package / Case 160-BQFP
Surface Mount YES
Number of Pins 160
Technical
Operating Temperature 0°C~70°C
Packaging Tube
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Terminal Finish Tin/Lead (Sn85Pb15)
HTS Code 8542.31.00.01
Technology CMOS
Voltage - Supply 4.75V~5.25V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 220
Supply Voltage 5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number DP83934
JESD-30 Code S-PQFP-G16
Function Controller
Qualification Status Not Qualified
Power Supplies 5V
Interface Parallel
Operating Supply Current 140mA
Supply Current-Max 110mA
Address Bus Width 32
Protocol Ethernet
Boundary Scan NO
Low Power Mode YES
External Data Bus Width 32
Number of Serial I/Os 2
Standards 10 Base-T PHY
Bus Compatibility NS32532; 68030; 68020
Data Transfer Rate-Max 1.25 MBps
Data Encoding/Decoding Method NRZ; BIPH-LEVEL(MANCHESTER)
Dimensions
Height Seated (Max) 4.1mm
Length 28mm
Width 28mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
