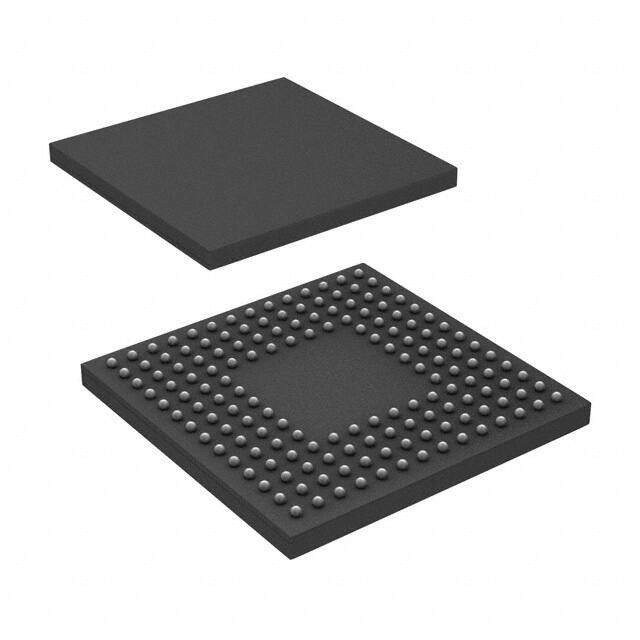

DP83815DUJB
RoHS
/
Package 160-LBGA
Category Integrated Circuits (ICs) / Interface - Controllers
Description
Non-RoHS Compliant BOTTOM Surface Mount CMOS Ethernet Controller 25MHz 743mW 0C~70C 100Mbps
PDF
/
Buying Options
Total Price: USD $10.57
Unit Price: USD $10.5688
≥1 USD $10.5688
Inventory: 464
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case 160-LBGA
Number of Pins 160
Technical
Operating Temperature 0°C~70°C
Packaging Tray
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 160
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Power Dissipation 743mW
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 220
Supply Voltage 3.3V
Base Part Number DP83815
Function Controller
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Interface PCI
Operating Supply Current 170mA
Number of Ports 1
Nominal Supply Current 170mA
Cable Length 120m
Clock Frequency 25MHz
Data Rate 100 Mbps
Address Bus Width 32
Protocol Ethernet
Boundary Scan NO
Low Power Mode YES
External Data Bus Width 32
Number of Serial I/Os 2
Standards 10/100 Base-T/TX PHY
Bus Compatibility PCI
Data Encoding/Decoding Method NRZ; NRZI; BIPH-LEVEL(MANCHESTER)
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
