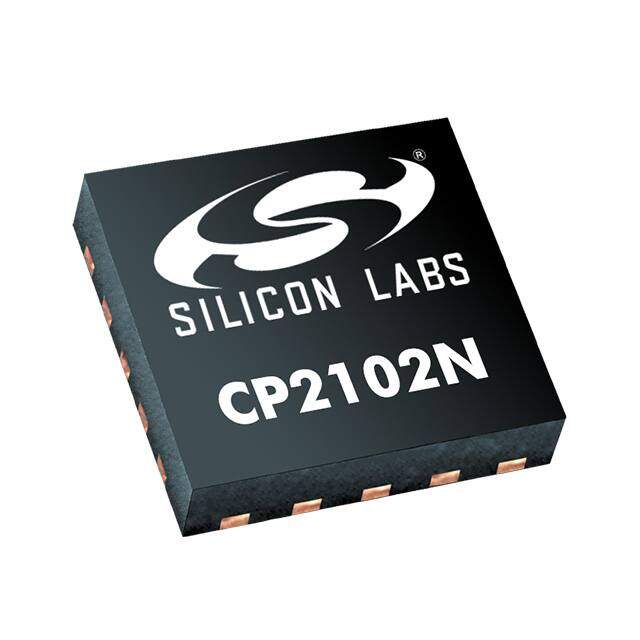

CP2102N-A01-GQFN20
RoHS
/
Package 20-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Controllers
Description
Tube 1997 UART USB 2.0 interface controller 3V~3.6V 800mum 9.5mA -40C~85C
PDF
/
Buying Options
Total Price: USD $6.71
Unit Price: USD $6.7127
≥1 USD $6.7127
≥10 USD $5.5081
≥100 USD $5.3352
≥500 USD $5.16325
≥1000 USD $4.9913
Inventory: 298
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Package / Case 20-WFQFN Exposed Pad
Surface Mount YES
Number of Pins 20
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 1997
Series USBXpress?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 20
Technology CMOS
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Function Bridge, USB to UART
Interface UART
Number of Ports 1
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Current - Supply 9.5mA
Protocol USB
USB USB 2.0
Standards USB 2.0
Max Junction Temperature (Tj) 105°C
Ambient Temperature Range High 85°C
Dimensions
Height 800μm
Length 3mm
Width 3mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
