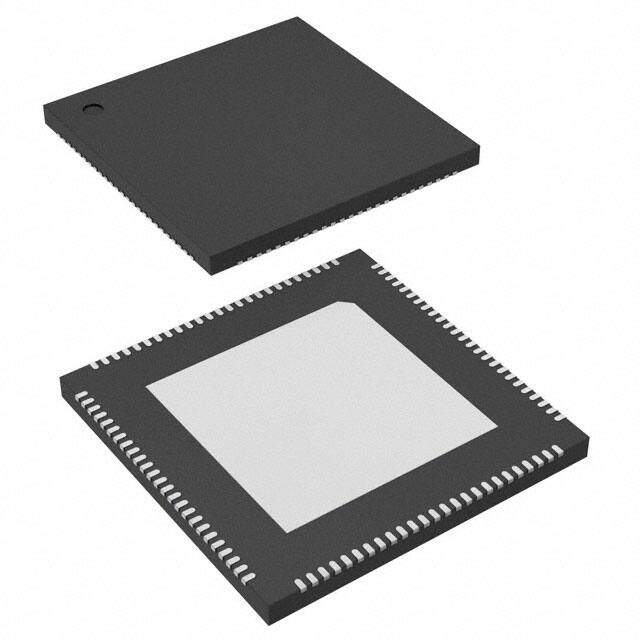

USB7050T/KDX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / Interface - Controllers
Description
ROHS3Compliant QUAD BUS CONTROLLER UNIVERSAL SERIAL BUS COMMERCIAL interface controller 25MHz 70C 625MBps 12mm
PDF
/
Buying Options
Total Price: USD $8.69
Unit Price: USD $8.6856
≥1 USD $8.6856
≥10 USD $7.2336
≥100 USD $6.5736
Inventory: 1345
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 1.2V
Terminal Pitch 0.4mm
JESD-30 Code S-XQCC-N100
Operating Temperature (Max) 70°C
Supply Voltage-Max (Vsup) 1.32V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 1.08V
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Clock Frequency 25MHz
Screening Level AEC-Q100
Bus Compatibility I2C, I2S, SMBUS, SPI, UART, USB
Data Transfer Rate-Max 625 MBps
Dimensions
Height Seated (Max) 0.9mm
Length 12mm
Width 12mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
