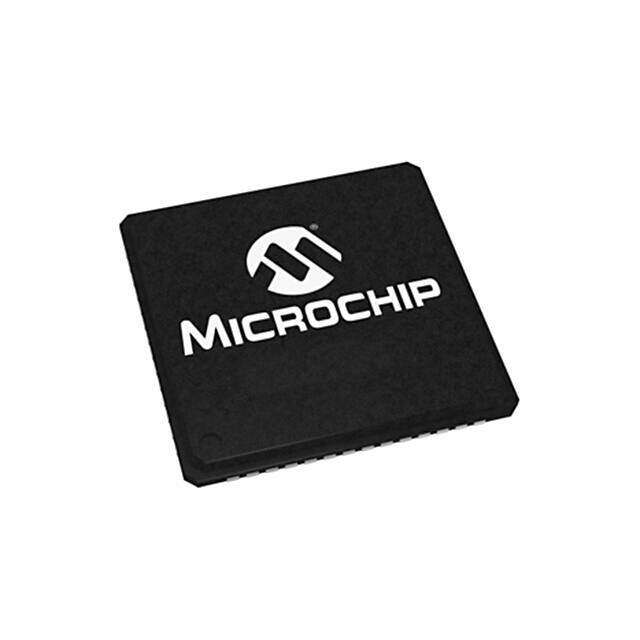

USB5742-I/2G
RoHS
RoHS compliant
RoHS compliantPackage 56-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Controllers
Description
USB5742 Tray S-XQCC-N56 2016 interface controller 1.2V 3.3V 7mm 625MBps -40C~85C
PDF
/
Buying Options
Total Price: USD $84.81
Unit Price: USD $84.8122
≥1 USD $84.8122
≥10 USD $82.1617
≥100 USD $79.5112
≥500 USD $76.8607
≥1000 USD $68.91015
Inventory: 1173
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1mm
Technical
Data Transfer Rate-Max 625 MBps
Standards USB 3.1
Screening Level TS 16949
Protocol USB
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Interface SPI
Function Hub Controller
JESD-30 Code S-XQCC-N56
Base Part Number USB5742
Terminal Pitch 0.4mm
Supply Voltage 1.2V
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 1.2V 3.3V
Technology CMOS
HTS Code 8542.31.00.01
Additional Feature ALSO OPERATES AT 3.3 V; IT HAS CRYSTAL FREQ OF 25MHZ NOM
Terminal Finish Matte Tin (Sn) - annealed
Number of Terminations 56
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 56-VFQFN Exposed Pad
Supply Chain
Factory Lead Time 16 Weeks
