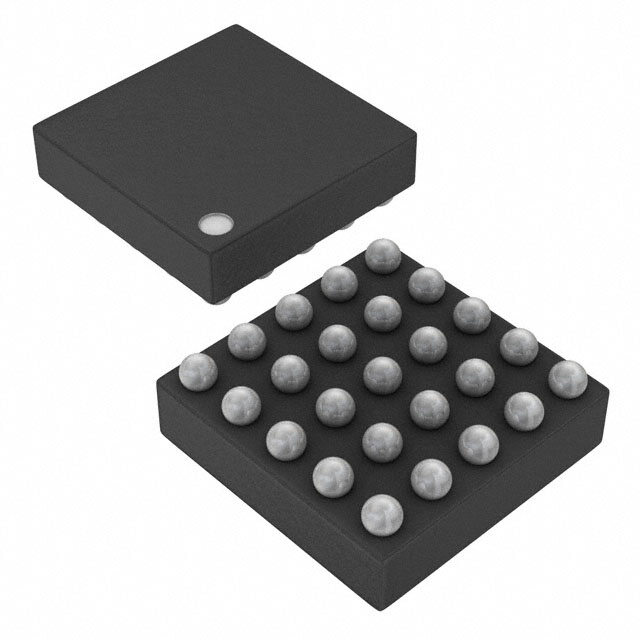

USB3503A-1-GL-TR
RoHS
RoHS compliant
RoHS compliantPackage 25-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
USB3503 Tape & Reel (TR) e1 2007 interface controller 3.6V 380mum 33mA 480Mbps
PDF
/
Buying Options
Total Price: USD $3.05
Unit Price: USD $3.0536
≥1 USD $3.0536
≥10 USD $2.5432
≥100 USD $2.3144
Inventory: 1224
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Surface Mount
Package / Case 25-UFBGA, WLCSP
Number of Pins 25
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2007
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Bus Controllers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.8V
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number USB3503
Function Hub Controller
Max Supply Voltage 3.6V
Min Supply Voltage 3.3V
Operating Supply Current 33mA
Number of Ports 3
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Clock Frequency 52MHz
Supply Current-Max 110mA
Data Rate 480 Mbps
Protocol USB
ESD Protection Yes
USB USB 2.0
Standards USB 2.0
Bus Compatibility I2C
Dimensions
Height 380μm
Length 2mm
Width 2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
