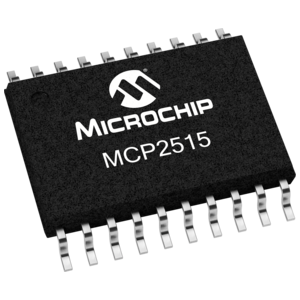

MCP2515-I/STVAO image
Favorite
MCP2515-I/STVAO image
Favorite

MCP2515-I/STVAO

Microchip Technology
RoHS
RoHS RoHS compliant
Package 20-TSSOP (0.173, 4.40mm Width)
Category Integrated Circuits (ICs) / Interface - Controllers
Description MCP2515 Tube R-PDSO-G20 NRZ interface controller 2.7V~5.5V 6.5mm 10mA 0.125MBps
PDF
/
Inventory: 4451
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 4.4mm
Length 6.5mm
Height Seated (Max) 1.2mm

Technical

Data Encoding/Decoding Method NRZ
Data Transfer Rate-Max 0.125 MBps
Bus Compatibility SPI
Standards CAN 2.0
Number of Serial I/Os 1
Screening Level AEC-Q100; TS 16949
Low Power Mode YES
Boundary Scan NO
Protocol CANbus
Current - Supply 10mA
Clock Frequency 25MHz
Interface SPI
Function Controller
JESD-30 Code R-PDSO-G20
Base Part Number MCP2515
Terminal Pitch 0.65mm
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 2.7V~5.5V
Technology CMOS
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tube
Operating Temperature -40°C~85°C TA

Physical

Surface Mount YES
Package / Case 20-TSSOP (0.173, 4.40mm Width)
