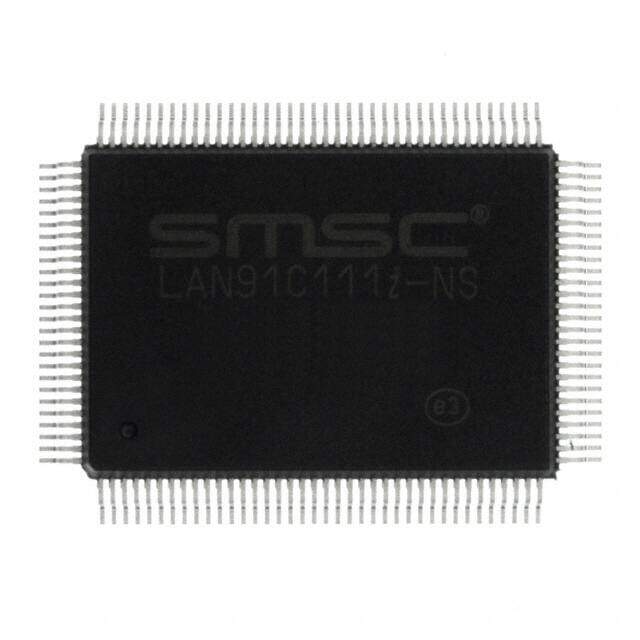

LAN91C111I-NS
RoHS
RoHS compliant
RoHS compliantPackage 128-BFQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
LAN91C111 Tray e3 NRZ; BIPH-LEVEL(MANCHESTER) interface controller 3.3V 3.05mm 140mA 100Mbps
PDF
/
Buying Options
Total Price: USD $33.1
Unit Price: USD $33.0968
≥1 USD $33.0968
≥10 USD $27.5792
≥100 USD $26.642
Inventory: 499
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Package / Case 128-BFQFP
Number of Pins 128
Weight 935.10902mg
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2011
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 128
Terminal Finish Matte Tin (Sn) - annealed
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Base Part Number LAN91C111
Function Controller
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.63V
Interface Parallel
Max Supply Current 140mA
Data Rate 100 Mbps
Protocol Ethernet
Boundary Scan NO
Low Power Mode YES
Number of Transceivers 1
Number of Serial I/Os 4
Standards 10/100 Base-T/TX PHY
Bus Compatibility ARM; SH; POWERPC; COLDFIRE; 680X0; 683XX; MIPS R3000
Data Encoding/Decoding Method NRZ; BIPH-LEVEL(MANCHESTER)
Dimensions
Height 3.05mm
Length 20mm
Width 14mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
