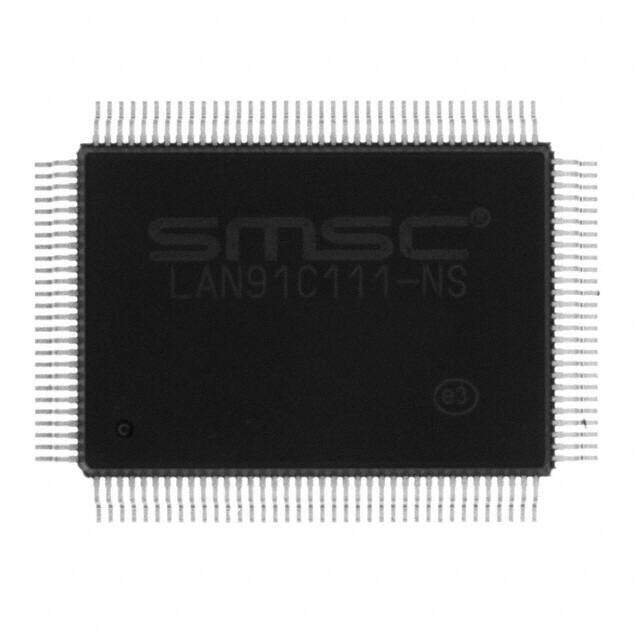

LAN91C111-NS
RoHS
RoHS compliant
RoHS compliantPackage 128-BFQFP
Category Integrated Circuits (ICs) / Interface - Controllers
Description
LAN91C111 Tray e3 NRZ; BIPH-LEVEL(MANCHESTER) interface controller 3.3V 3.05mm 140mA 100Mbps
PDF
/
Buying Options
Total Price: USD $30.45
Unit Price: USD $30.448
≥1 USD $30.448
≥10 USD $25.3704
≥100 USD $24.497
Inventory: 580
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Package / Case 128-BFQFP
Number of Pins 128
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 14.1mm
Length 20.1mm
Height 3.05mm
Technical
Data Encoding/Decoding Method NRZ; BIPH-LEVEL(MANCHESTER)
Bus Compatibility ARM; SH; POWERPC; COLDFIRE; 680X0; 683XX; MIPS R3000
Standards 10/100 Base-T/TX PHY
Number of Serial I/Os 2
Number of Transceivers 1
Low Power Mode YES
Boundary Scan NO
Protocol Ethernet
Data Rate 100 Mbps
Clock Frequency 25MHz
Max Supply Current 140mA
Interface Parallel
Supply Voltage-Max (Vsup) 3.63V
Operating Supply Voltage 3.3V
Function Controller
Base Part Number LAN91C111
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Number of Terminations 128
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003
Packaging Tray
Operating Temperature 0°C~70°C
