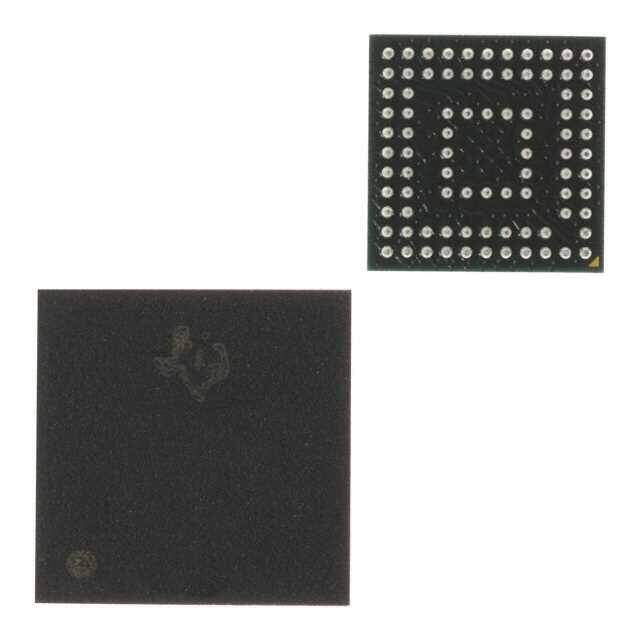

TLV320AIC34IZASR
RoHS
RoHS compliant
RoHS compliantPackage 87-TFBGA
Category Integrated Circuits (ICs) / Interface - CODECs
Description
Tape & Reel (TR) EAR99 Active Tin/Silver/Copper (Sn/Ag/Cu) codec 24b 1.1V 1.2mm -40C~85C
PDF
/
Buying Options
Total Price: USD $7.46
Unit Price: USD $7.4624
≥1 USD $7.4624
≥10 USD $6.7408
≥100 USD $6.427168
≥500 USD $5.580608
≥1000 USD $5.329843
≥3000 USD $4.859554
Inventory: 1392
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 890μm
Width 6mm
Length 6mm
Height 1.2mm
Technical
Input Code TWOS COMPLEMENT
Number of Analog Outputs 14
S/N Ratio, ADCs / DACs (db) Typ 92 / 102
Output Code TWOS COMPLEMENT
Dynamic Range, ADCs / DACs (db) Typ 93 / 95
Filter YES
Number of ADCs / DACs 4 / 4
Sigma Delta Yes
Number of Analog Inputs 12
Number of DAC Channels 4
Resolution (Bits) 24 b
Voltage - Supply, Digital 1.65V~1.95V
Voltage - Supply, Analog 2.7V~3.6V
Data Interface PCM Audio Interface
Min Supply Voltage 1.1V
Max Supply Voltage 3.6V
Interface I2C, I2S, Serial
Operating Supply Voltage 1.95V
Pin Count 87
Base Part Number TLV320AIC34
Terminal Pitch 0.5mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Audio
ECCN Code EAR99
Number of Terminations 87
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 87
Package / Case 87-TFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
