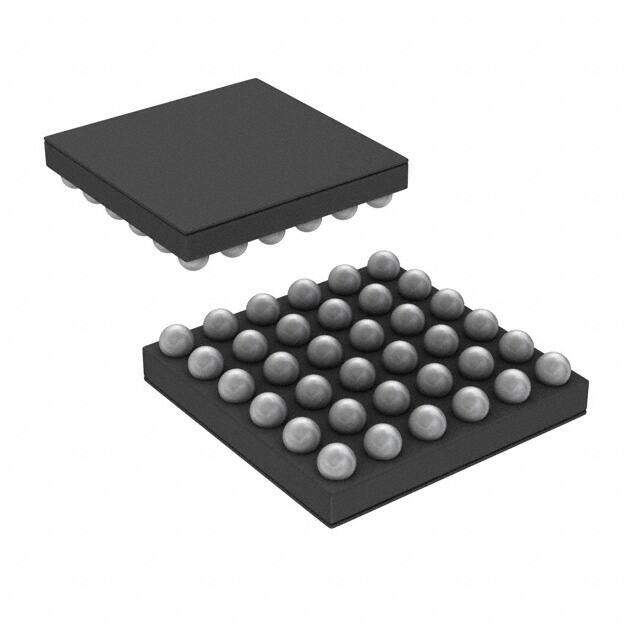

TLV320AIC23BIZQER image
Favorite
TLV320AIC23BIZQER image
Favorite

TLV320AIC23BIZQER

Texas Instruments
RoHS
RoHS RoHS compliant
Package 80-VFBGA
Category Integrated Circuits (ICs) / Interface - CODECs
Description Contains Lead Surface Mount ROHS3Compliant BALL IC CODEC Stereo Audio -40C~85C 96ksps 23mW 53.693997mg
PDF
/
Inventory: 3737
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 5mm
Length 5mm

Technical

S/N Ratio, ADCs / DACs (db) Typ 90 / 100
Dynamic Range, ADCs / DACs (db) Typ 90 / 90
Number of ADCs / DACs 2 / 2
Sigma Delta Yes
Resolution (Bits) 16 b, 20 b, 24 b, 32 b
Number of ADC Channels 1
Number of A/D Converters 2
Power Consumption 23mW
Voltage - Supply, Digital 1.42V~3.6V
Voltage - Supply, Analog 2.7V~3.6V
Sampling Rate 96 ksps
Data Interface I2C, Serial
Min Supply Voltage 1.42V
Max Supply Voltage 3.6V
Interface 2-Wire, I2C, SPI, Serial
Pin Count 80
Base Part Number TLV320AIC23
Terminal Pitch 0.5mm
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Other Consumer ICs
Type Stereo Audio
Number of Terminations 80
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Weight 53.693997mg
Number of Pins 80
Surface Mount YES
Package / Case 80-VFBGA
Mounting Type Surface Mount
