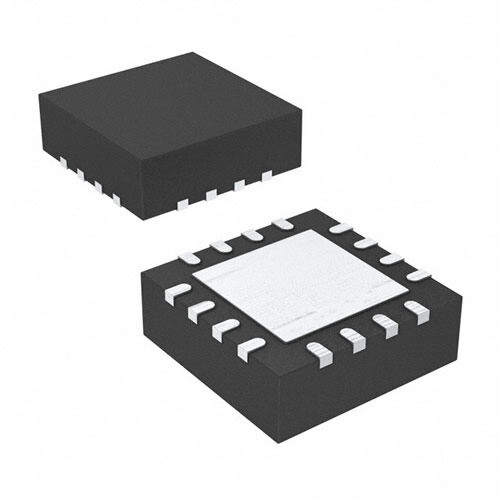

WM8903CLGEFK/R image
Favorite
WM8903CLGEFK/R image
Favorite

WM8903CLGEFK/R

Cirrus Logic Inc.
RoHS
/
Package 40-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - CODECs
Description Tape & Reel (TR) Obsolete 92 / 96 Stereo Audio codec 92dB 1.2V 117.310327mg 96ksps
PDF
/
Inventory: 1137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 5mm
Length 5mm
Height Seated (Max) 0.6mm

Technical

Companding Law A/MU-LAW
S/N Ratio, ADCs / DACs (db) Typ 92 / 96
Filter YES
Number of ADCs / DACs 2 / 2
Sigma Delta Yes
Resolution (Bits) 24 b
Signal to Noise Ratio (SNR) 92 dB
Number of A/D Converters 2
Voltage - Supply, Digital 1.42V~3.6V
Voltage - Supply, Analog 1.71V~2V
Sampling Rate 96 ksps
Operating Mode SYNCHRONOUS
Interface 2-Wire, Serial
Terminal Pitch 0.4mm
Supply Voltage 1.2V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Type Stereo Audio
Number of Terminations 40
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Weight 117.310327mg
Number of Pins 40
Package / Case 40-UFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
